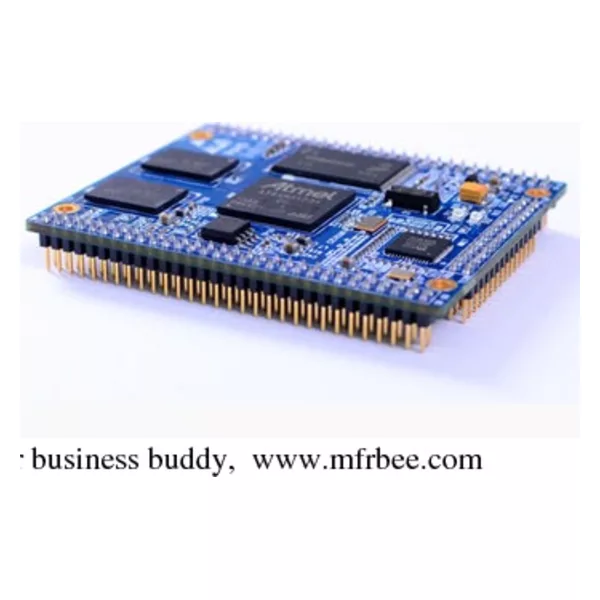

Atmel SAMA5D34 CPU Board,Integrated 1GMBit Ethernet on board
Product Quick Detail
- Packaging
- 0.5kg
- Delivery
- 2 Days
Specifications
<a href="http://armdevs.com/CM-SAMA5D34.html">http://armdevs.com/CM-SAMA5D34.html</a>
CM-SAMA5D34 Features
Dimensions: 52*64mm, 8 layer
Working Temperature: -40 to +85 Celsius
Atmel SAMA5D34 Cortex-A5 CPU, 536 MHz
512 MB DDR2 SDRAM, 256 MB NAND Flash
150Pin Expand connector
Low power consumption, only 0.5W
Integrated 1GMBit Ethernet on board
CM-SAMA5D34 CPU Board Feature
CPU processor
ATMEL SAMA5D34 ARM processor
Cortex-A5, working at 536MHZ.
DDR2 RAM Memory
512MB DDR2 RAM, 32bit data bus
Flash Memory
256MB Nand Flash
4MB SPI Flash
Pin interface
2 x 60 pin 2.0mm space DIP connector
1 x 30 pin 2.0mm space DIP connector
Resource: USB, Ethernet, Serial, SSC Audio, CAN, SDIO,LCD, Touch, SPI, IIC, GPIO
On-board resources
Integrated 1GMBit Ethernet on board
2 x LED
Supply Voltage 3.3V
PCB Size
8 layer, 52 x 64 (mm)
Low power consumption, only 0.5W
Email: market@armdevs.com
More details,please feel free to contact COREWIND
<a href=" http://armdevs.com/CM-SAMA5D34.html">http://armdevs.com/CM-SAMA5D34.html</a>
