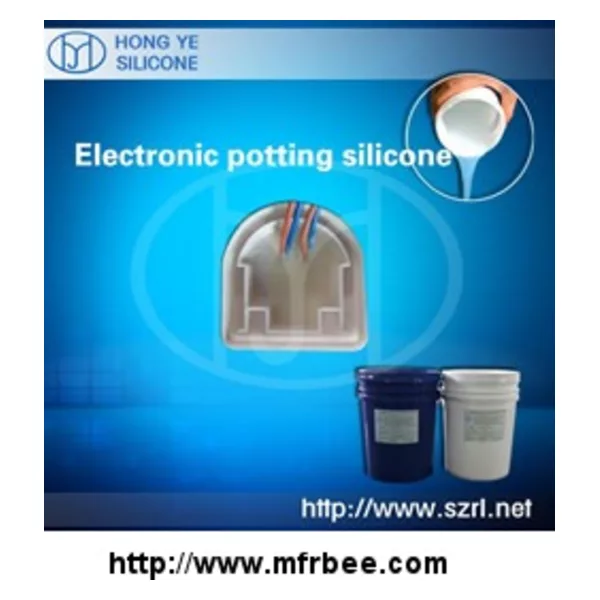

Electronic potting compound silicone rubber
Product Quick Detail
- China
- shenzhen
- Purity
- 100%
- HS. Code
- 39100000
- Color
- as your request
- Packaging
- 1kg, 5kg, 25kg, 200kgs
- Delivery
- 3 Days
Specifications
Typical Application of electronic potting compound silicone rubber:
electronic potting compound silicone rubber is suitable for bonded seal of electronic components, power module and control module, which requires waterproof and insulation. It can be broadly used for LED screen, Wind Power Generator, PCB substrate, etc. Silicone Rubber Electronic Material for good elasticity is a kind of low viscosity, Inherent flame resistance, two components addtion cured potting silicone with heat-conducting. It cures with both on room temperature and heated temperature. It has the feature of the higher temperature the faster of the curing time. It can be applied to electronic components for insulation, waterproofing, fixed and flame retardant. It mainly applied in electronic components surface with materials of PC(Poly-carbonate),PP,ABS,PVC, etc. and metal materials.
Description of electronic potting compound silicone rubber:
electronic potting compound silicone rubber is a newly insulating material
silicon of silicon compounds. It cures without heat, corrosion and just with little shrinkage.
It can be applied to the sealing and pouring of various electronic components, and then forming insulation system.
Features of electronic potting compound silicone rubber:
1. No toxicity, solventless, no odor and no cure by-product.
2. Equal amount of mixing ratio, good fluidity, easy processing.
3. No significant exotherm or shrinkage during curing.
Technical Parameters of electronic potting compound silicone rubber:
|
Before Curing |
Appearence | Black/Transparent Fluid |
| Density(25°C g/ml) | 0.98±0.02 | |
| Viscosisty(25°Ccps) | Part A 500±100:Part B:800±100 | |
| Mixing Ratio | A:B=1:1(By weight) | |
| Operating Time(25°C hr) | 5 | |
| Curing time(80°C hr) | 0.5 | |
|
After Curing |
Hardness(Shore A) | 0-40 |
| Dielectric Strength(KV/mm) | 23 | |
| Volume Resistance(Ω.Cm) | 1.0×10 15 | |
| Permittivity(1.2MHz) | 3.0 | |
| Temperature Resistence(°C) | -60~200 | |
| Fire Resistance | UL94-V1 |
(Pls note: all data of this product above in 25 °C with 55% humidity conditions. We don’t guarantee a same data if testing under different conditions, or when data was regenerated)
Precaution of electronic potting compound silicone rubber:
1. Twelvemonths from date of shipment when stored at 24C in original unopened packages.
2. This kind of product is nondangerous product, it can be transported as general chemicals.
3. Products exceed the storage life should be confirmed normal before using.
Operation way of electronic potting compound silicone rubber:
1.Put part A and part B in separate container with equal dosage and stir evenly when mixing the two parts together.
2. Put the mixture into the vacuum machine under 0.08 MPa for 5 minutes.
3. The temperature influences the curing time of electronic potting silicone rubber. When in too low temperature, we suggest customers appropriately heat the mixture to accelerate vulcanization.
