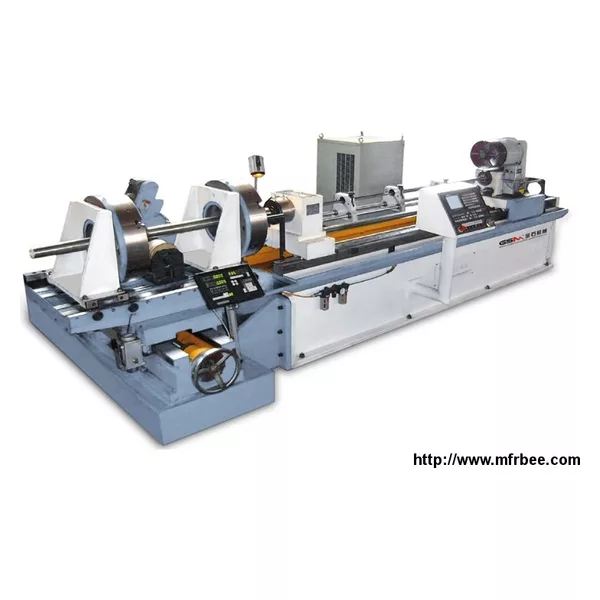

Overview:
Processing Method: outside chip removing; gun drill
Hole Diameter(mm): Φ5~Φ30
Hole Depth(mm): 1500
Bench Traverse Distance(mm): 200
NC System: GSK980TDC / FANUC OI Mate TC
Drill Pipe: frequency control; simultaneously rotating and feeding
Workpiece: double truck clamping, fixed, non-rotation
Guide Sleeve: pneumatically drive, stretch out and draw back between left and right side
Parameter:
Processing Ability:
1. Number of Spindle(pcs): 1
2. Bench Area(m2): 1500X600
3. Hole Diameter(mm): Φ5~Φ30
4. Max Drilling Hole Depth(mm): ≤1500
5. Max Workpiece Diameter (mm): ≤Φ210
6. Length Range of Workpiece(mm): ≤1500
7. Bench Traverse Distance(mm): 200
Processing Speed:
1. Max Rotation Speed of Drill Pipe’s Spindle (r/min): 5500
2. Feeding Speed Range(mm/min): ≤1500
3. Forward Speed(mm/min): ≤2000
Processing Accuracy:
1. Hole Skewness: ≤1/1000 (draw ratio≤100)
2. Dimensional Accuracy of Drill Pipe: IT7~IT11
3. Hole Rugosity: Ra0.8~Ra3.2
Power of Machine
1. Drill Pipe Motor Power(kw): 5.5
2. Oil Pump Power(kw): 5.5+5.5(double pump group)
3. Feeding Power(kw): 1.8
4. Power of Oil-temp Cooling Machine(kw): 2.8
5. Total Power(kw): 25
Hydraulic System
1. Max Volume of Flow(L/min): 110
2. Max Pressure(Mp): 12
3. Filtering Accuracy(um): 20
4. Oil Storage Capacity(L): 1360
Basic Dimension & Weight
1. Dimension (mm): 6000*3200*1500(L*W*H)
2. Height between Drill Pipe Centre and Ground(mm): 1070
3. Height between Drill Pipe Centre and Bench(mm): 350.0
4. Weight of Hydraulic System (kg): 2000
5. Weight of Main Engine(kg): 7000
