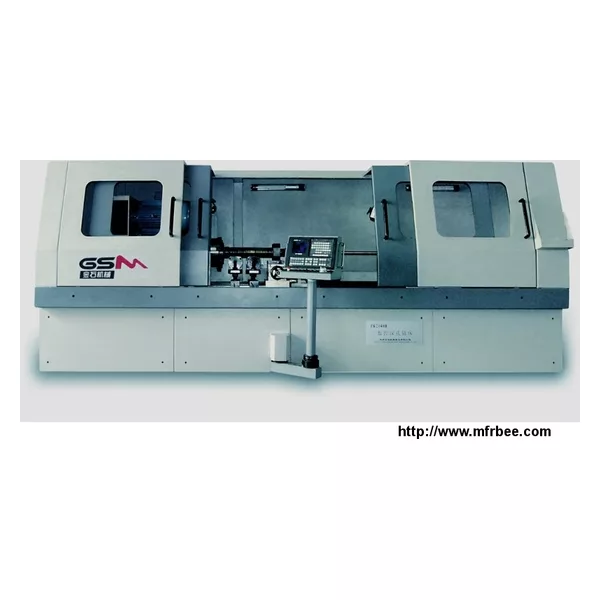

ZK2140S/1000 Jet Deep Hole Drilling Machine Tool

Overview:

Processing Method: double tube jet drilling

Hole Diameter(mm): Φ18.5~Φ40

Hole Depth(mm): 1000

NC System: GSK980TDC / FANUC OI Mate TC

Drill Pipe: feeding, fixed and non-rotation

Workpiece: frequency controlled rotating

Guide Sleeve: pneumatically drive

Workpiece Clamping: hydraulic chuck, hydraulic centre support

Parameter:

Processing Ability:

1. Number of Axis(pcs): 1

2. Hole Diameter(mm): Φ18.5~Φ40

3. Hole Depth(mm): ≤1000

4. Max Diameter of Workpiece(mm): Φ200

5. Diameter of Hydraulic Centre Support Clamping(mm): Φ200

6. Length Range of Workpiece(mm): ≤1000

Processing Speed:

1. Max Rotation Speed of Drill Pipe’s Spindle (r/min): 1500

2. Feeding Speed Range(mm/min): ≤1500

3. Feeding Fast Forward Speed(mm/min): ≤2000

Processing Accuracy:

1. Hole Skewness: ≤1/1000

2. Dimensional Accuracy of Drill Pipe: IT8~IT11

3. Hole Rugosity: Ra1.6~Ra3.2

Power of Machine

1. Workpiece Rotating Power(kw): 11.0

2. Feeding Power(kw): 2.5

Feeding Torque(M.N) 10

3. Total Power(kw): 65

4. Oil Pump Power(kw): 11.0+5.5(double pump group)

5. Oil-temp Cooling Power(kw): 0.8

Hydraulic System

1. Max Volume of Flow(L/min): 100

2. Max Pressure(Mp): 6.0

3. Filtering Accuracy(um): 20

4. Oil Storage Capacity(L): 1360

Basic Dimension & Weight

1. Dimension (mm): 5400*3000*1800

2. Height between Drill Pipe Center and Ground(mm): 1070

3. Weight of Main Engine(kg): 6000

4. Weight of Hydraulic System(kg): 2500
