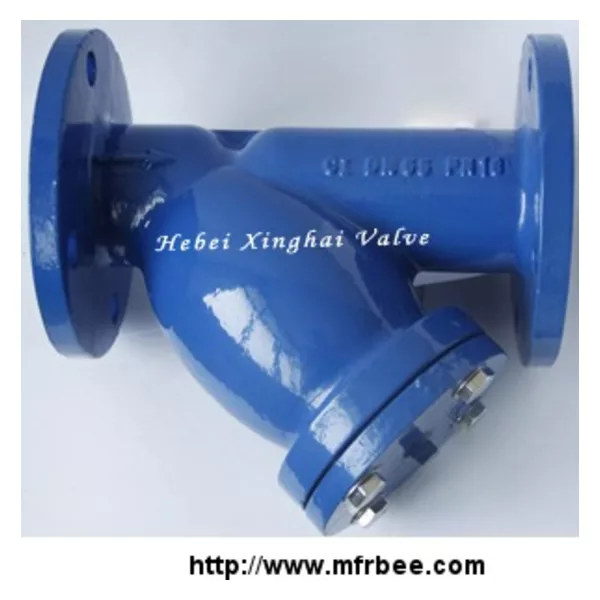

Cast Iron Y Strainer

Place Of Origin
China
Packaging
Wooden case
Delivery
In 35days after received the deposit
Cast iron Y STRAINER
Flange dimension conform to EN1092-2, DIN 2532/2533 ; ANSI B16.1 Class125; ANSI B16.1 Class150
Testing conform to BS6755
The hole dimension of screen can be as per the customer's requirement
Components
NO. PART NAME MATERIAL
1 Body Cast iron, Ductile iron
2 Screen SS304
3 Bolt Carbon steel
4 Gasket EPDM, BUNA or Graphite
5 Bonnet Cast iron, Ductile iron
6 Plug Malleable iron
Dimensions(unit mm)
DN L D D1 b n-d
50 230 165 125 20 4-19
65 290 185 145 20 4-19
80 310 200 160 22 8-19
100 350 220 180 24 8-19
125 400 250 210 26 8-18
150 480 285 240 26 8-22
200 600 340 295 30 12-22
250 730 405 355 32 12-26
300 850 460 410 32 12-26
350 980 520 470 36 16-26
400 1100 580 525 38 16-30
450 1200 640 585 40 20-30
