Introduction:

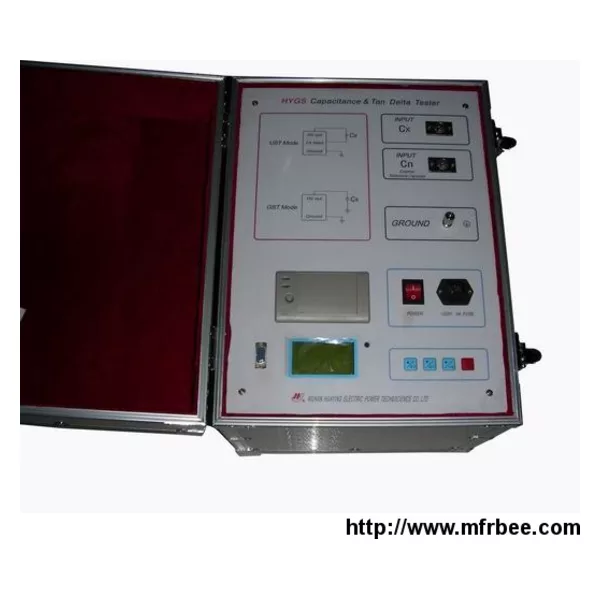

GDGS automatic tangent delta tester is applied to measure the dielectric loss and capacitor value of insulation materials in high voltage power equipment. The non-power frequency voltage source is integrated in the tester to avoid power frequency interference. That make the tester has a good performance in measurement precision.
Technique Index:
1 Measurement error:
Capacitor value: 1%RDG+5pf
Tangent delta: 1%RDG+0.04%
2 Output voltage: AC 0.5kV~10KV
3 Testing voltage setting resolution: 0.5kv
4 Maximum output capacity: 200mA
5 Testing frequency: 45Hz/55Hz
6 Test mode: fully automatic
7 Power supply: AC220V 50/60HZ OEM
8 Environment temperature: 0~50~C
9 Humidity: ≤85%RH
10 Weight:40KG
