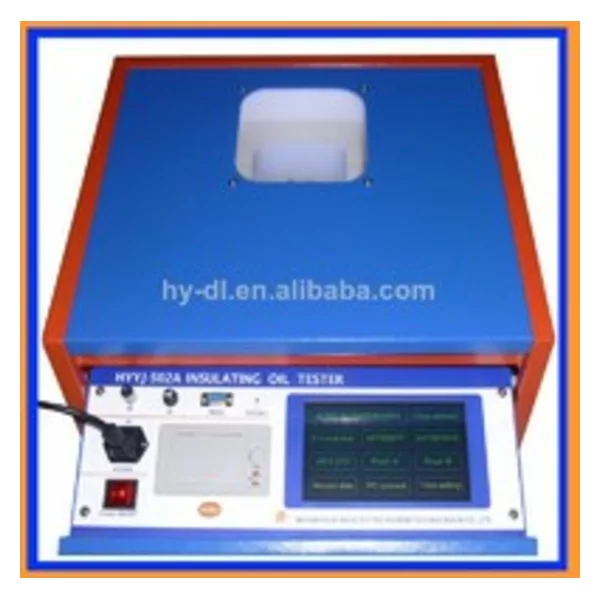

GDVJ-502A Insulating transformer oil dielectric strength tester

Product name: Insulating oil tester

1) IEC60156/IS6792/BS5874/VDE0370-5

2) User-defined

3) 5 minute test

4) ASTMD877

5) ASTMD1816

6) JIS C 2101-99(S)

7) Proof "A"

8) Proof "B"

Insulating oil tester technical index

(1) AC220V±10% power supply input

(2) Output voltage:AC 0V~100KV

(3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%

(4) Max test times: 9

(5) Init wait times:0~999s

(6) Stir time: 0~999s

(7) Wait time: 0~999s

(8) Measurement accuracy: ±(1% of full scale + 2 digits) Resolution:0.1KV

(9) Temperature measurement:

Measurement range : 0°C to 70°C, or better

Temperature resolution : 1°C, or better

Operating temperature : up to 45°C

(10)Storage:100 groups

(11)7 inch colorful LCD with touch pad

(12)Oil test vessel temperature measurement unit
