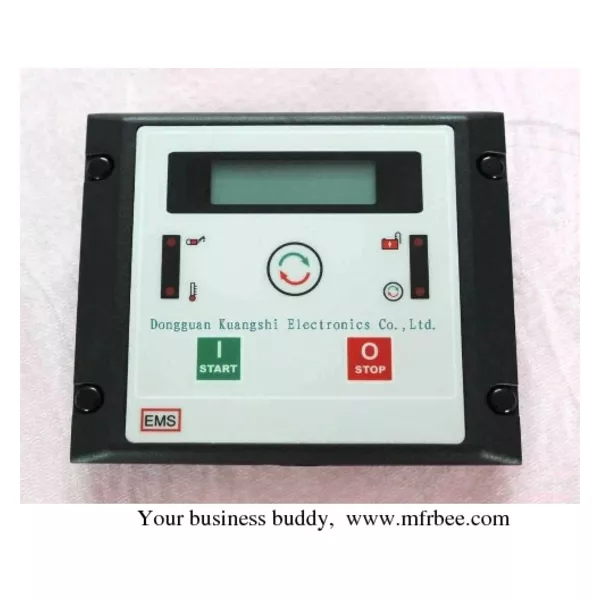

ems39Generator Controller

The EMS39 is an integrated Genset controller which incorporates full engine protection, LCD display of engine temperature, oil pressure, battery volts, speed and genset hours, provides manual start and stop buttons, autostart, and controls excitation of the battery charging alternator.

Low cost
Operates with energise to run or energise to stop fuel solenoids
perates and controls the battery excitation and battery volts
Monitors oil pressure or level and provides shutdown protection
Monitors engine temperature and provides shutdown protection
Monitors battery volts and provides low battery volts warning
Monitors engine speed and provides optional shutdown protection against extreme high/low frequency
Maintains engine running hours
Fully sequenced starting and stopping with retries
LCD display of starting and running sequence Icon alerts against low oil pressure, high engine temperature, low battery volts, excitation failure, high/low engine speed Preheat output (if any) starts the engine easily under cold environment
Run output (if any) activates on successful engine start and controls load
Alarm output (if any) in the event of abnormal operation
Autostart imput allows remote control start
Speed detection directly from Generator, MPU or Alternator output
nput can be external shutdown for emgency stop

6V~32V DC, normal 12V/24V automotive, protected against cranking dropout

Screwless front mounting, overall dimensions 110x100x60mm, mounting hole 96x96mm
