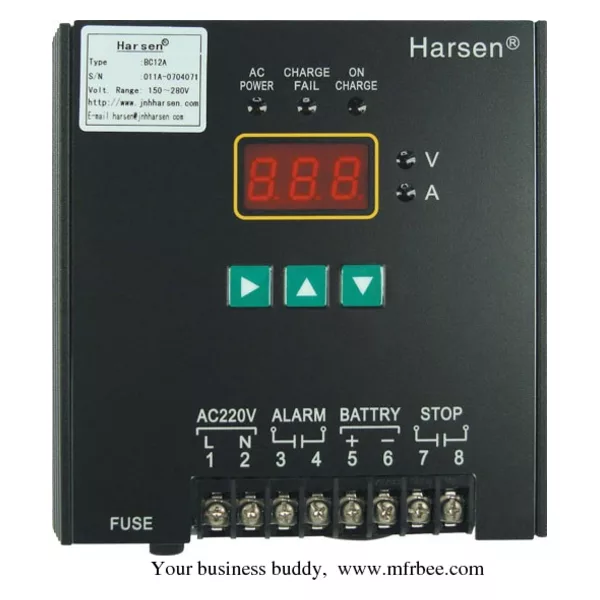

BC12A charger

Intelligent charger is designed for diesel engine starting operation

Charging device designed battery.

The charger adopts computer measurement,

The control, protection, digital display voltage and charging current parameters. The main characteristic of

Point:

1

According to the charging characteristics of battery charging, the charging mode

"Constant variable flow"

That is less than a preset value, the battery voltage

First, for the constant current charging; in the battery voltage higher than a predetermined

Value, the charging current decreased as the battery voltage increases.

Until the threshold voltage to battery, charging for trickle charging variable, this

The charging current can only self discharge counter battery, and long time to charge

Also on the battery full charge is harmless, can maintain the battery charger

The state ensures the service life of the battery

. The charging process as shown in fig..

2

By switching power supply circuit, the battery charger has working electric wide

Pressure, higher than the traditional charger efficiency and smaller volume.

3

Automatic recognition.

12V

And

24V

Battery.

4

. six stage charging current gear selection:

3A

,

4.5A

,

6A

,

8A

,

10A

,

12A

.

5

. perfect protection function: high low voltage battery, overcurrent, overheating and open

Protection.

6

With power failure memory function.

Brief introduction of the principle and function of the charger:

The charger connection is good, after the power is switched on to start charging. In storage

Terminal voltage pool below the preset value, the constant current charging for the battery;

The terminal voltage is higher than the preset value, with the increase of the voltage of the battery charging current

Gradually reduce. Until the threshold voltage to battery, charging into trickle

Charge.

"

AC POWER

"

The charger for AC input power.

"

ON CHARGE

"

The charger to charge the battery.

"

CHARGE FAIL

"

The battery charge state,

The emergence of high

Pressure, flow and other failures, the charger fault indicator light;
