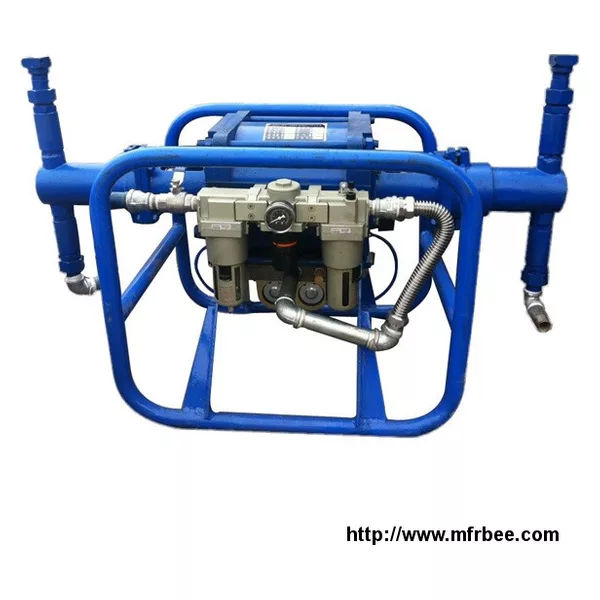

2ZBQ50-6 high pressure Pneumatic grouting pump

Chinacoal07 Keywords: Grouting pump , Pneumatic grouting pump , 2 ZBQ series pneumatic grouting pump

Product Introduction

Type 2 ZBQ series pneumatic grouting pump adopts pneumatic transmission, can be in flammable and explosive, much dust and rain water etc. Work under the bad environment, which can realize the promise the quantity, automatic constant pressure variable (discharge plasma volume increased with the increase of discharge plasma pressure decreases, the shallow rock strata grouting can effectively protect the same), of 1:1 ratio of slurry can be double fluid grouting, etc.Widely used in coal mine, iron wall waterproof, grouting and bolting grouting reinforcement, as well as subway, tunnel, water conservancy, construction and grouting water plugging and broken rock, the grouting consolidation of soft foundation reinforcement work.

Main Parameter

1.Model: 2ZBQ50-6

2.Displacement: 50L/min

3.Working Pressure: 6Mpa

4.Travel: 120mm

4.Plunger diameter: 75mm

5.Gas supply pressure: 0.6-1Mpa

6.Round trips: 0-70 times/min

7.The cylinder diameter: 250mm

8.The size of pulp inlet: 1"

9.The pulp mouth size: M22x1.5

10.Overall dimensions: 1100*450*850mm

11.Weight: 90kg
