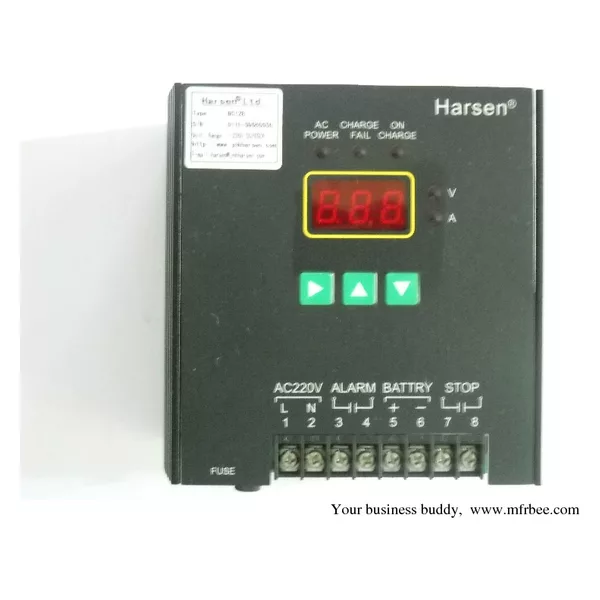

Intelligent charger is charging device designed for diesel engine run battery starting. The charger adopts chip computer
Measurement, control, protection, digital display voltage and charging current parameters. Its main characteristics:
1.According to the charging of the battery charging, the charging mode is designed "constant variable flow"
In the end, that is lower than the voltage of the accumulator
The default value for the constant current charging, charging higher than the battery voltage; in the preset value, the charging current of battery voltage rise with
High and gradually reduce. Until the threshold voltage to battery, charging become micro current charging, the charging current can only be offset accumulator
The self discharge, and long time of battery charging is harmless, full charge state of battery charger can maintain and ensure electricity
Pool service life
. The charging process as shown in fig..
2.The switching power supply circuit, the battery charger has a wide operating voltage, higher than the traditional charger work efficiency and more fine
Volume.
3.Automatic recognition
12V And 24V Battery or manual switch.
4.Level six charging current gear selection:
3A,5A,6A,8A,10A,12A.
5.Perfect protection function: high and low voltage, over current, the battery open circuit protection.
6.With remote control to stop charging function.
7.With power failure memory function.
8.Can choose to work in the pull switch
230V Or 120V AC voltage Note: the charger before electrification must use the occasion to
220V/110V Select switch to the appropriate location, otherwise it will damage the charger.
