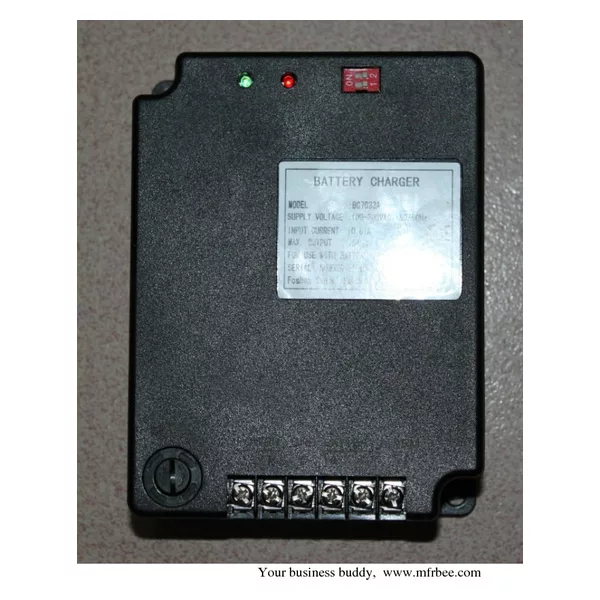

BC7033A Intelligent charger

1.BC7033A

Intelligent charger is designed for diesel engine operation started by battery

Charging device.

2.According to the charging characteristics of battery charging, the charging mode is designed "constant variable flow"

The battery voltage is lower than the preset value, the constant current charging for the battery;

The terminal voltage is higher than the preset value, the charging current decreased as the battery voltage increases.

Until the threshold voltage to battery, charging become micro current charging, the charging current can only.

The battery self discharge elimination, and long time of battery charging is harmless, the charger can dimension

Full charge state holding battery and ensuring the service life of the battery. The following diagram of charging process

"The charging curve"

3. the switching power supply circuit power factor control, the charger has a working electric wide

Pressure, higher than the traditional charger efficiency and smaller volume.

4.Suitable

Be used for

12V And 24V

The battery, can be selected by the panel switch.

5.Charger with charging function. To strengthen the mode selection.

6.Finish

Protection function: high and low voltage, battery good overcurrent, overheating and open circuit protection.

7.ANN

Loading mode:

Use screw mounting or

DIN35

Guide rail mounting

(for non vibration environment)

Brief introduction of the principle and function of the charger

Brief introduction of the principle and function of the charger:

The charger connection is good, after the power is switched on to start charging. The battery voltage is lower than the preset value, the constant current charging for the battery;

The terminal voltage is higher than the preset value,

The charging current decreased as the battery voltage increases.

Until it reaches the threshold voltage of battery,

Variable charge for trickle charging.

POWER

The indicating lamp

The indicating lamp:

The AC power input is normal, the indicator light.

ALARM

The indicating lamp

The indicating lamp:

When the charger failure, low failure, high temperature protection, the indicator light (ALARM Effective)
