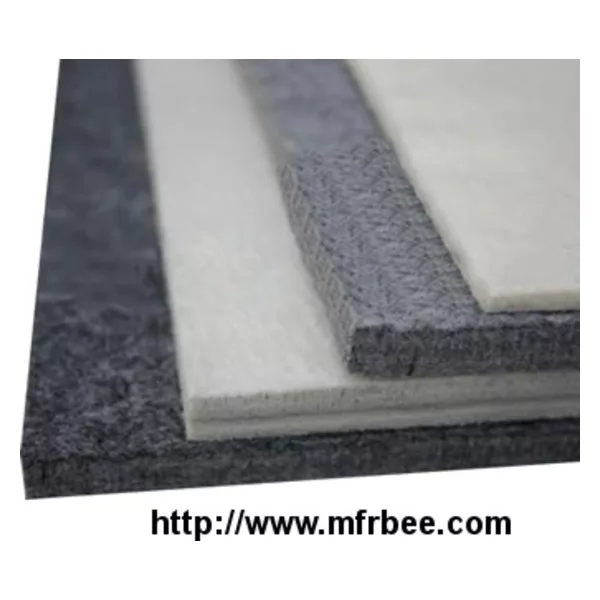

Needle punched wool felt is a kind of felt made by vertically needling fibers together to achieve a desired thickness and density. Needle punched felt is commonly manufactured from wool, synthetic and other re-processed fibers. Also, the needle punched wool felt can be made of 100% wool.
Compared needle punched wool felt with the pressed wool felt, you can find the difference between them.
Needle punched wool felt is more economical than the pressed wool felt. Some of the needle punched wool felt has less wool content than the SAE standard pressed wool felt. F-15N and F-26N are the two standard type of needle punched wool felt. The 100% wool needle punched wool felt is more expensive than the low wool percent wool felt.
Specifications
Item | Thickness | ASTM type | Thickness nominal | Thickness limits | Nominal lbs./ Sq. Yd. | Limits lbs./ Sq. Yd. | Width |
ENWF-1501 | 1/8" | 9R5 | 0.125" | 0.113" - 0.138" | 1.063 | 0.956 - 1.169 | 36"/ 72" |
ENWF-1502 | 3/16" | 9R5 | 0.187" | 0.168" - 0.206" | 1.563 | 1.406 - 1.719 | 36"/ 72" |
ENWF-1502 | 1/4" | 9R5 | 0.25" | 0.225" - 0.275" | 2.125 | 1.913 - 2.338 | 36"/ 72" |
ENWF-1503 | 5/16" | 9R5 | 0.313" | 0.281" - 0.344" | 2.625 | 2.363 - 2.888 | 36"/ 72" |
ENWF-1504 | 3/8" | 9R5 | 0.375" | 0.338" - 0.413" | 3.188 | 2.869 - 3.506 | 36"/ 72" |
ENWF-1505 | 1/2" | 9R5 | 0.5" | 0.450" - 0.550" | 4.25 | 3.825 - 4.675 | 36"/ 72" |
ENWF-1506 | 5/8" | 9R5 | 0.625" | 0.563" - 0.688" | 5.313 | 4.781 - 5.844 | 36"/ 72" |
ENWF-1507 | 3/4" | 9R5 | 0.75" | 0.675" - 0.825" | 6.375 | 5.738 - 7.013 | 36"/ 72" |
ENWF-1508 | 7/8" | 9R5 | 0.875" | 0.788" - 0.963" | 7.438 | 6.694 - 8.181 | 36"/ 72" |
ENWF-1509 | 1" | 9R5 | 1" | 0.900" - 1.100" | 8.5 | 7.650 - 9.350 | 36"/ 72" |
Item | Thickness | ASTM type | Thickness nominal | Thickness limits | Nominal Lbs./ Sq. Yd. | Limits Lbs./ Sq. Yd. | Width |
ENWF-2601 | 1/8" | 8R5 | 0.125" | 0.113" - 0.138" | 0.875 | 0.788 - 0.963 | 36"/ 72" |
ENWF-2602 | 3/16" | 8R5 | 0.187" | 0.168" - 0.206" | 1.313 | 0.168 - 0.206 | 36"/ 72" |
ENWF-2602 | 1/4" | 8R5 | 0.25" | 0.225" - 0.275" | 1.75 | 1.575 - 1.925 | 36"/ 72" |
ENWF-2603 | 5/16" | 8R5 | 0.313" | 0.281" - 0.344" | 2.188 | 1.969 - 2.406 | 36"/ 72" |
ENWF-2604 | 3/8" | 8R5 | 0.375" | 0.338" - 0.413" | 2.625 | 2.363 - 2.888 | 36"/ 72" |
ENWF-2605 | 1/2" | 8R5 | 0.5" | 0.450" - 0.550" | 3.5 | 3.150 - 3.850 | 36"/ 72" |
ENWF-2606 | 5/8" | 8R5 | 0.625" | 0.563" - 0.688" | 4.375 | 3.938 - 4.813 | 36"/ 72" |
ENWF-2607 | 3/4" | 8R5 | 0.75" | 0.675" - 0.825" | 5.25 | 4.725 - 5.775 | 36"/ 72" |
ENWF-2608 | 7/8" | 8R5 | 0.875" | 0.788" - 0.963" | 6.125 | 5.513 - 6.738 | 36"/ 72" |
ENWF-2609 | 1" | 8R5 | 1" | 0.900" - 1.100" | 7 | 6.300 - 7.700 | 36"/ 72" |
Features
Applications
The needle punched wool felt is widely used in our daily life.
Water-repellent and oil-repellent polyester needle-punched felt contain many moisture and oily and dust-absorbing and deliquescent dust in the dust during the operation of the bag filter. It may generate water film or oil film on the dust surface and increase adhesion. Although ...
Anti static filter bag is currently ideal dust filter material, with good ventilation energy, high dust removal efficiency, and a certain degree of acid, alkali and heat resistance, weaving process uses a multilateral brushing, increased fabric thickness, elasticity, so the ...
Needle felt filter bag is the key part of bag filter operation, the fabric and design of our needle felt filter bag try to pursue high efficiency filtration, easy dust stripping and durable effect. Polyester needle felt filter bags have the advantages of high void space, good ...
