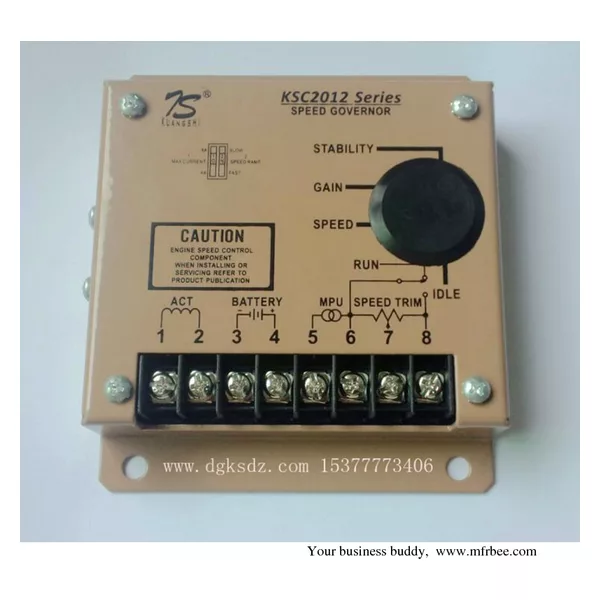

Speed Control Unit KSC2012
Product Quick Detail
- Place Of Origin
- china(mainland)
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Item specifics
- is_customized:
- Yes
- Brand Name:
- kuangshi
- Model Number:
- KSC2012
Product Description
Item specifics
- is_customized:
- Yes
- Brand Name:
- Kuangshi
- Model Number:
- KSC 2012
- Place of Origin:
- China (Mainland)
Product Description
Product Details:
| Place of Origin | Guangdong, China (Mainland) |
|---|---|
| Brand Name | KUANGSHI |
| Model Number | KSC5522E (ESD5522E) |
| weight | 0.676kg |
| purpose | brushless generator |
Payment & Shipping Terms:
| Price: | Get Latest Price |
|---|---|
| Minimum Order Quantity: | Negotiable Trial Order |
| Minimum Order Quantity: | 5 Piece/PiecesTrial Order |
| Packaging Details: | standard carton,size of carton,52x38x42cm,size of packing:18x17.5x5.5cm, 50pcs/carton |
| Delivery Time: | In stock |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 2000 Piece/Pieces per Month |
Generator Set Speed Controller ESD5522
This model is specially designed for Cummins actuators, but with the same function as GAC ESD5522E.
| PERFORMANCE : | |
| RPM Stability: | <±0.25% |
| Speed Range: | 1KHz ~ 7.5KHz |
| Speed Drift with Temperature: | Max ±1% |
| IDLE adjustment: | 160 ± 20Hz ~ 95% of set speed |
| DROOP Regulation: | Minimum 15Hz ±6Hz/ 1 Amp change |
| Maximum: 400Hz ±75Hz/ 1 Amp change | |
| Speed Trim Range: | ± 200Hz (external 1KΩ) |
| AUX Input Sensitivity: | 148Hz / 1V., ± 10Hz, Impedance 1MΩ |
| START FUEL Regulation: | 160 ± 20Hz ~ 70% of set speed |
| RAMP Regulation Time: | 1.5 ~ 20Sec. |
| Output Current at 10V: | 20mA Max. |
| ENVIRONMENT: | |
| Operating temperature range: | -40 °c ~ 85 °c |
| Working Humidity Range: | Maximum 95% |
| Stocking Temp: | -55 ~ 90 °C |
| Shocking: | 20-100HZ 500mm/Sec. |
| INPUT POWER SUPPLY: | |
| Voltage: | 12V or 24V DC Battery Systems |
| Grounding Pole: | Negative pole |
| Power Consumption: | 50mA |
| Actuator Current Range(25°c)-(Inductive Load): | Min. 2.5A; Max. 10A continuous |
| MPU: | |
| Signal: | 0.5 ~ 120 RMS |
Note: The performance parameters in the frequency when measuring 4000Hz
We provide speed controllers as follows:
Cummins:
3037359; 3044196; 3062322; 4914090;
4914091; 3032733; 3044195; 3098693.
KSC5500 can substitute for ESD5500
KSC5550 can substitute for ESD5550
KSC5111 can substitute for ESD5111
KSC5220 can substitute for ESD5220
KSC5570 can substitute for ESD5570
KSC5520 can substitute for ESD5520
KSC5522 can substitute for ESD5522
KSC5330 can substitute for ESD5330
KSC5521 can substitute for ESD5521
KSC5120 can substitute for ESD5120
