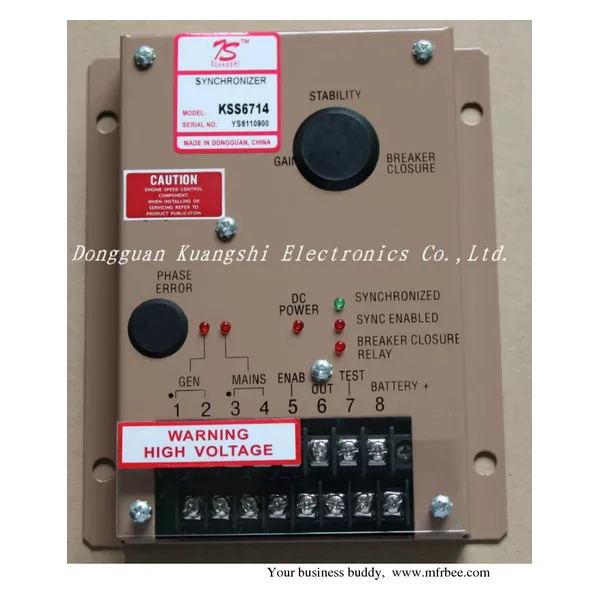

Synchronizer SYC6714 (KSS6714 )

Specifications:

Generators and main bus AC inputs:

Sensitivity-----------------------------------------------------50 VRMS -500 VRMS (line-to-line or line-neutral)

Frequency---------------------------------------------------------------50 or 60 HZ Nom.(400HZ, special order)

Isolation------------------------------------------------------------------------------1000 V min.

Burden--------------------------------------------------------------------------------less than2.5 VA

BATTERY/DC POWER SUPPLY REQUIREMENTS (TERMINALS 8-10)

Low Voltage Range (terminals 8 and 9 connected)--------------------------10-16 V DC

High Voltage Range --------------------------------------14-40 V DC

Current Required ----------------------------------------less than 200 ma

PERFORMANCE ( WITH ESD SERIES)

Capture Range-------------------------------------------- +4% based on 3250Hz

Output Voltage-------------------------------------------- 3-7V DC

Breaker Closure Window Size---------------------------1°-25°

Relay Contact Rating(N.O. or N.C.)---------------------10A at 28VDC

Phase Error Adjustment Range-------------------------±10°typical

LED’s-Synchronization Indicator----------------------Green LED

Mains---------------------------------------------------------Red LED

Generator---------------------------------------------------Red LED

DC supply----------------------------------------------------Red LED

Synchronizer Enabled-------------------------------------Red LED

Relay Closure-----------------------------------------------Red LED
