Synchroscope 6714+
6714+ sunchroscope is a high-tech designed product, there is no need to install synchronous controllers when using synchroscope so the cost of generators and machine control cabinet is reduced and the line is simplified. And what's the most important, it improves the stability of generators and machine control cabinet.
The functions of LED

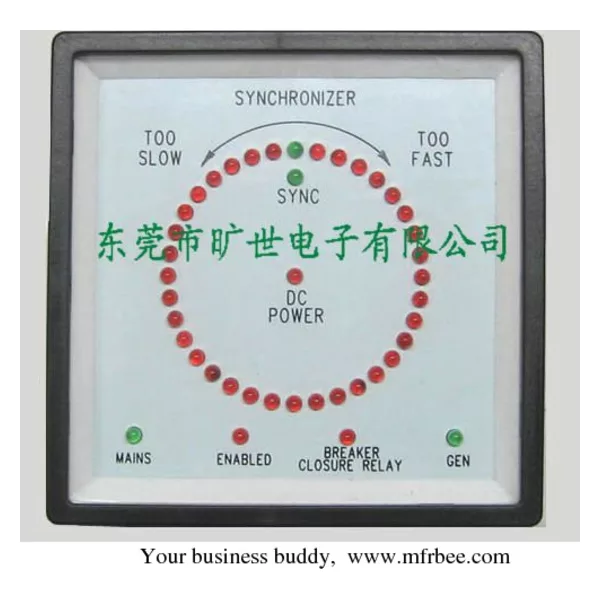

36 LED in a circle
When it is synchronous, the phase difference is near 0°, the top green LED shall be lit. When fgen>fbb, the phase difference is in timing angle, LED shall be lit in the direction of "TO FAST", a phase difference of 10°will be increased when a more LED is lit in that direction. When fgen<fbb, the phase difference is in inverted angle, LED shall be lit in the direction of "TO SLOW". A phase difference of 10°shall be decreased when a more LED is lit in that direction. If the frequency of the generator sets is on the high side or on the low side, the LED shall be lit in timing direction or inverted direction accordingly.
SYNC
The LED shall be lit when the phase difference is lower the presetting difference.
DC POWER
The LED shall be lit when the power is supplied.
MAINS
The LED shall be lit when electric network or Bus-bar is supplied power.
ENABLED
The LED shall be lit when the synchronization is been accepted.
BREAKER CLOSURE RELAY
The switching signal shall be showed synchronously if the phase difference is lower than presetting difference and meanwhile the LED is lit when the synchronization is been accepted.
GEN
The LED shall be lit when generator is supplied with power.
Synchronizer KSS6714 (syc6714) Specifications: Generators and main bus AC inputs: Sensitivity-----------------------------------------------------50 VRMS -500 VRMS (line-to-line or line-neutral) Frequency---------------------------------------------------------------50 or 60 HZ ...
