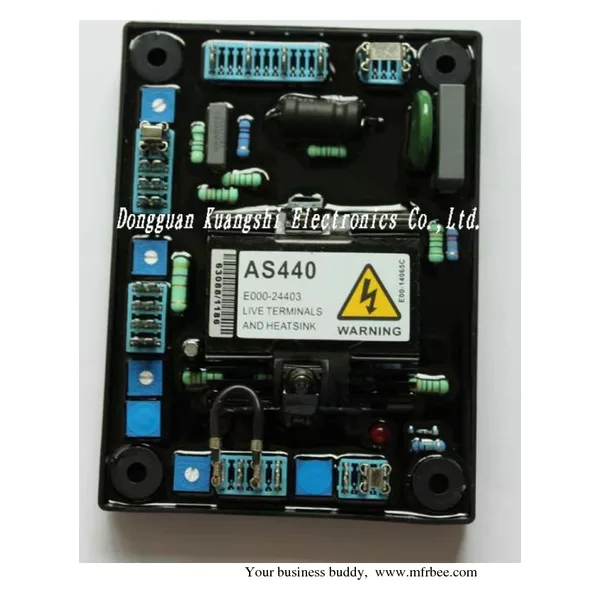

AVR AS440

Product Details:

Place of Origin	Guangdong, China (Mainland)
Brand Name	kuangshi
Model Number	AS440
Usage	Regulating voltage
Phase	Three Phase
Current Type	AC
weight	0.4kg
purpose	brushless generator

Payment & Shipping Terms:

Price:	FOB USD 0~60 / Piece Get Latest Price
Minimum Order Quantity:	Negotiable Trial Order
Minimum Order Quantity:	5 Piece/PiecesTrial Order
Port:	Shengzhen
Packaging Details:	Packaging Detail: Standard Carton. size of packing: 17cm x15cm x7cm
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	2000 Piece/Pieces per Month

1)SENSING INPUT

Voltage Jumper selectable

100-130 Vac 1 phase or

190-264 Vac 1 phase

Frequency 50-60 Hz nominal

2)POWER INPUT

Voltage 100-264 V ac 1 phase

Frequency 50-60 Hz nominal

3)OUTPUT

Voltage 82 V d.c. @ 200 V a.c.

Current continuous 4A (see note 1).

transient 7.5A for 10 secs.

Resistance 15 ohms min

(10 ohms min when input

volts is less than 175 ac)

4)REGULATION

+/- 1.0% (see note 2)

5)THERMAL DRIFT

0.03% per deg. C change in AVR ambient (see note 3)

6)TYPICAL SYSTEM RESPONSE

AVR response 20 ms

Filed current to 90% 80 ms

Machine Volts to 97% 300 ms

7)EXTERNAL VOLTAGE ADJUSTMENT

+/-10% with 1 k ohm 1 watt trimmer (see note 4)

Increasing resistance lowers voltage.

8)UNDER FREQUENCY PROTECTION

Set point 94 -98% Hz (see note 5)

9)UNIT POWER DISSIPATION

12 watts maximum

10)BUILD UP VOLTAGE

4 Volts @ AVR terminals

11)ANALOGUE INPUT

Maximum input +/- 5 Vdc (see note 6)

Sensitivity 1V for 5% Generator Volts (adjustable)

Input resistance 1k ohm

12)QUADRATURE DROOP INPUT

10 ohms burden

Max. sensitivity: 0.07 A for 5% droop 0PF

Max. input: 0.33 A

13)OVER EXCITATION PROTECTION

Set point 65 V dc

Time delay 10-15 seconds (fixed)

14)ENVIRONMENTAL

Vibration 20-100 Hz 50mm/sec

100Hz 2kHz 3.3g

Operating temperature -40 to +70C (note 7)

Relative Humidity 0-70C 95% (note 8)

Storage temperature -55 to +80C

voltage regulator AS440

Technical specification
