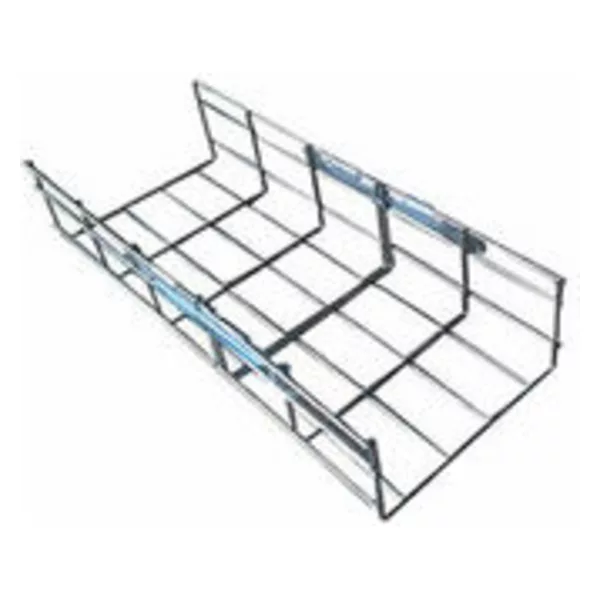

Wire mesh cable tray

Wire mesh cable tray, also called basket cable tray, is a kind of cable tray made of stainless steel wires by welding wires together, forming a basket-like mesh. Wire mesh cable trays provide a quick solution to supporting large quantities of cables in data centers, network equipment rooms and places where there is complex machinery.

50mm high × 400mm wide stainless steel wire mesh cable tray ideal for supporting interior cables

200mm wide × 500mm long stainless steel basket cable tray with 50mm × 100mm mesh size

Features:

• Wire mesh cable tray have high strength to support large quantities of network cables.
• Resist corrosion, heat because of pre-galvanized, hot-dipped galvanized, powder coated surface treatment.
• Open design makes cables move, ventilate smoothly, decreasing collection of debris, dust.
• Can be cut and formed to create smooth curved transitions around obstacles.
• Available in many sizes depending on different uses.
• No sharp edges and prevent injures and damage to cables.
• Easy and fast installation with accessories.

Specification:

• Material: stainless steel 304/316 wire, carbon steel wire.
• Finish: hot-dipped galvanized, electrolytic polishing, plastic-sprayed, powder coated.
• Wire diameter: 4.0mm - 6.0mm.
• Hole size: 50mm × 50mm, 50mm × 100mm.
• Length: 250mm - 3000mm.
• Width: 50mm - 600mm.
• Height: 30mm - 200mm.
• Loading capacity: 50 - 1000kg.
• Welding strength: broken force over 1166N.
• Accessories: bend, risers, T-junctions, reducers, clips, holder, corbel, base.

The holder has good supporting force and can be fixed on the wall to support cables

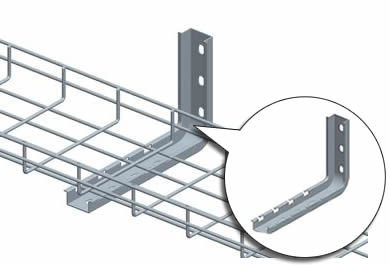

L-type holders can be connected with basket cable trays with screws for supporting cables

Applications:
Wire mesh cable trays are used for supporting data cables, network cables, telecommunication cables both in interior and exterior environment.

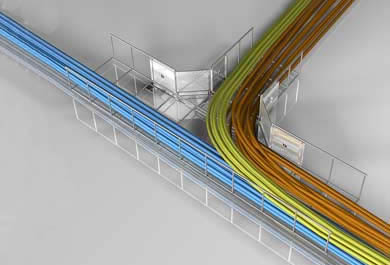

Wire mesh cable has T-junction section for supporting cables in different ways

Yellow powder coated basket cable trays are suitable for carrying cables in interior computer server room
