Aluminum Welding Wire Used to Weld Aluminum Alloys
Product Quick Detail
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
ALUMINUM WELDING WIRE WITH HIGH STABILITY AND TOUGHNESS
Aluminum welding wire includes more than one type wire, because it has different chemical components. Different alloys make up different aluminum welding wires, like: ER4047, ER1100, ER5183, ER5356, ER4043, ER1070, ER1060, ER2319, ER5556 and so on. The working conditions are different because of different types aluminum welding wire. Therefore, the application of different aluminum welding wire is also different.

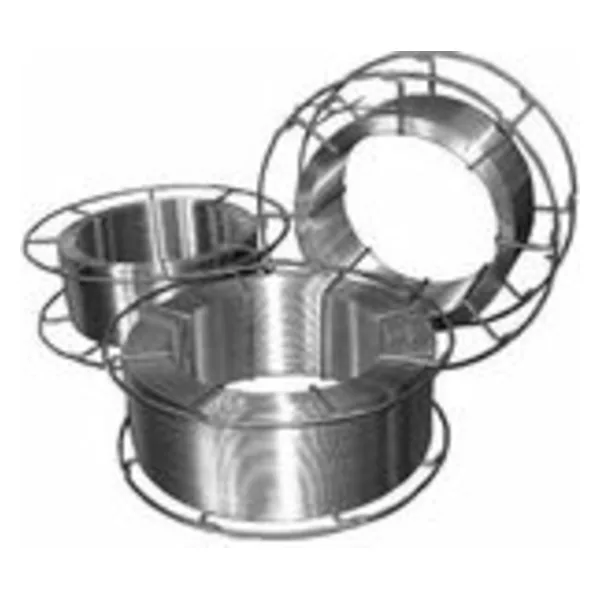

Baskets of different sizes makes welding wire have various weights.
Plastic-spool-packaged aluminum welding wire is cheaper for widely use.
Coil is the most simple package style that makes the packing of aluminum welding wire more convenient.
Main Characteristics:
- Outstanding corrosion resistance.
- High toughness.
- High stability.
- Excellent permeability.
- Splendid fluidity.
- Easy to operate.
- Low welding costs.
- Wide applicability.
Application:
- Aluminum welding wire can be used in two aspects:
- As electrode wire with semi-automatic and automatic gas-shielded welding (MIG-welding);
- As filler material in TIG welding not consume electrode (TIG-welding).
- The most important application of aluminum welding wire is that it is widely used for brazing of aluminum, Al-Mn, Al-Si-Mg alloy materials.
- It is widely used in petrochemical industry, offshore facilities, railway, automotive and so on.
- Specific application is shown below: It is used in welding carbon steel and 500MPa grade low alloy. And it is used for welding these articles, like: bicycles, aluminum scooter, engine carriage, pressure vessel, medical equipment, furniture, ships, container, mould, etc.
Details:
- Material: Aluminum/Aluminum alloy.
- Diameter: 0.6-6.0mm.
Package:
- 0.5-9kg/plastic spool, every plastic spool in one carton, then put the cartons on the wooden pallets.
- 20kg/coil.
- 1-20kg/basket.
- Besides we can also provide customized package as requested.
| Model Number | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Al |
|---|---|---|---|---|---|---|---|---|---|
| ER4047 | 11.0-13.0 | 0.8 | 0.3 | 0.15 | 0.1 | 0.05 | 0.2 | / | Balance |
| ER1100 | ≤1 | / | 0.05 ~ 0.2 | ≤0.05 | / | / | ≤0.1 | / | ≥99.5 |
| ER5183 | ≤0.4 | ≤0.4 | ≤0.1 | 0.5 ~ 1 | 4.3 ~ 5.2 | 0.05 ~ 0.25 | ≤0.25 | ≤0.15 | Balance |
| ER5356 | ≤0.25 | ≤0.4 | ≤0.1 | 0.05 ~ 0.2 | 4.5 ~ 5.5 | 0.05 ~ 0.2 | ≤0.1 | 0.06 ~ 0.2 | Balance |
| ER4043 | 4.5 ~ 6 | ≤0.8 | ≤0.3 | ≤0.05 | ≤0.05 | / | ≤0.1 | ≤0.2 | Balance |
| ER1070 | 0.2 | 0.25 | 0.04 | 0.03 | 0.03 | / | 0.04 | 0.03 | Balance |
| ER1060 | ≤0.25 | ≤0.35 | ≤0.05 | ≤0.03 | ≤0.03 | / | ≤0.05 | ≤0.03 | Balance |
| ER2319 | ≤0.20 | ≤0.30 | 5.8 ~ 6.8 | 0.2 ~ 0.4 | ≤0.02 | / | ≤0.10 | 0.1 ~ 0.2 | Balance |
| ER5556 | ≤0.25 | ≤0.40 | ≤0.10 | 0.6 ~ 1.0 | 4.7 ~ 5.5 | 0.05 ~ 0.2 | ≤0.20 | 0.05 ~ 0.2 | Balance |
