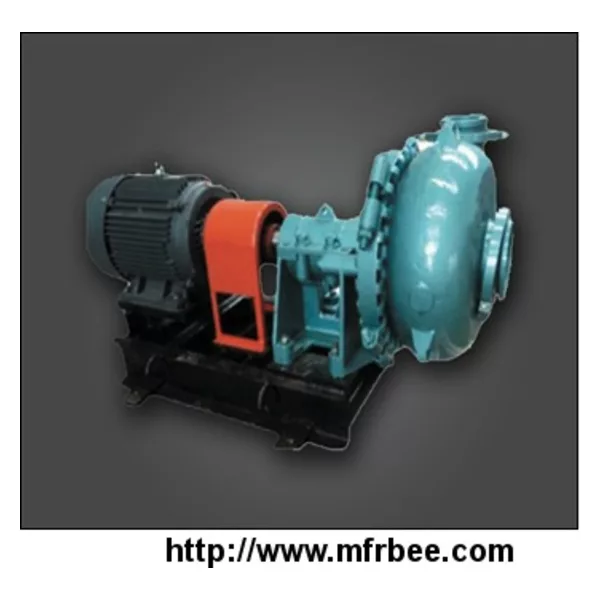

DGD Slurry Pump
Product Quick Detail
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Details:
Performance range
Size:4-16inches
Capacity:36-5040m3/h
Head:5-80m
Material:Cr27,Cr28,
Seal：packing seal,expeller seal,mechnical seal.
Design features
DGD type pump is horizontal single stage end suction with single casing slurry pump,it adopts to dredging project.with wide passage and good suction ability.
The wet parts is high-hardness material,it has interchangeable hard metal or pressure moulded elastomer liners.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations anCd applications.
Applications
Dredging and relevent projects.
