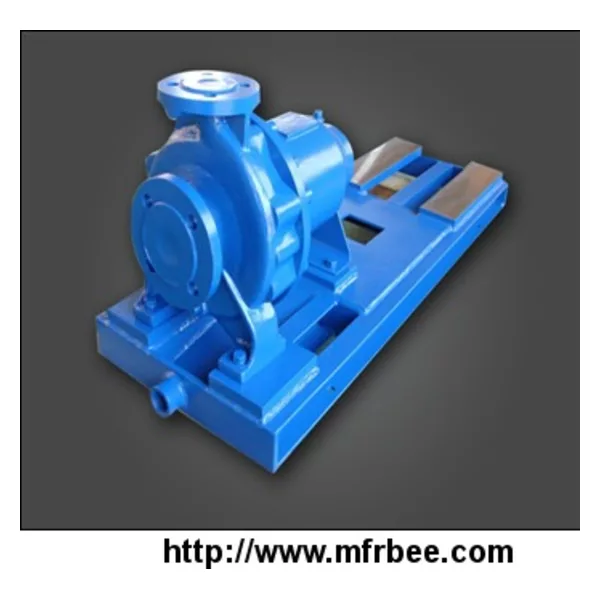

MZF Magnetic Drive Pump

Performance range:

Size:DN25~DN200

Capacity :1~600m3/h

Head :~200m

Temperature:less than 250℃

Pressure:2.5MPa

Power:~160kW

Material:cast iron,cast steel,stainless steel,Hastelloy,Ti and Ti alloy and so on

Design feature:

1. Single stage single suction,overhang structure

2. It adopts medium’s internal circulation to lubricate and cool the magnetic coupling and sliding bearing.The internal circulation includes high pressure internal circulation and low pressure circulation.The high pressure internal circulation pump is suitable for the medium which is easy for vaporization,the low pressure internal circulation pump is suitable for the medium which isn’t esay for vaporization.

3. Absolute no leakage

4. The heating jacket and cooling jacket can be used according to working condition.
