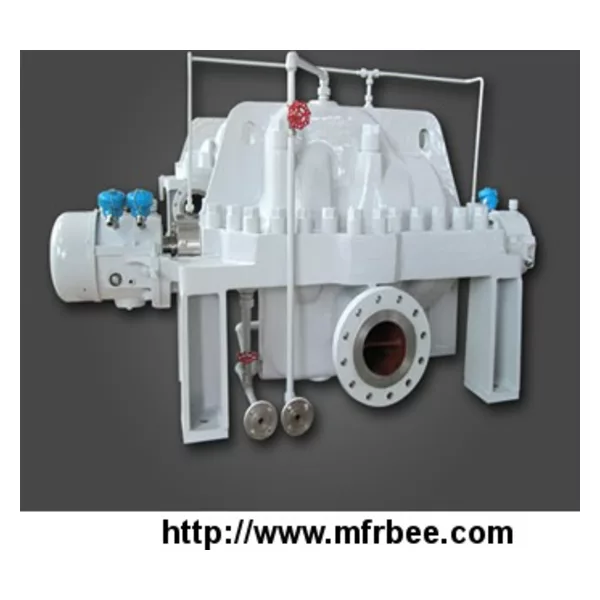

API610 BB3 Pump AMD Model
Product Quick Detail
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- N/A
Specifications
Size: 1-20 inches
Capacity: 25-800 m3/h
Head: 200-1050m
Temperature: 0-210 °C
Material: Cast steel, SS304, SS316, SS316Ti, SS316L, CD4MCU
Structure features:
Design:Full compliance with API610 8th edition specification
Construction:
1.The casing is axially split with the suction and discharge branches located in the lower half,so it allows the complete pump rotor with bearings to be removed for maintenance without disturbing the main pipework and valves.Short inspection and maintenance times
2.Impeller is symmetrically arranged.Rotor is in hydraulic balance.
3.Double volute casing reduced radial thrust and bearing loads.
Advantages:
1.Wide choice of hydraulic,good NPSHr performance,high efficiency,wide perfect region,power saving and low consumption.
2.Reliability:Every products is well checked before shipment.
3.Manufacture:excellent equipment,high-class staff,top-ranking products.
4.Service:rapid service,lifetime maintenance.
