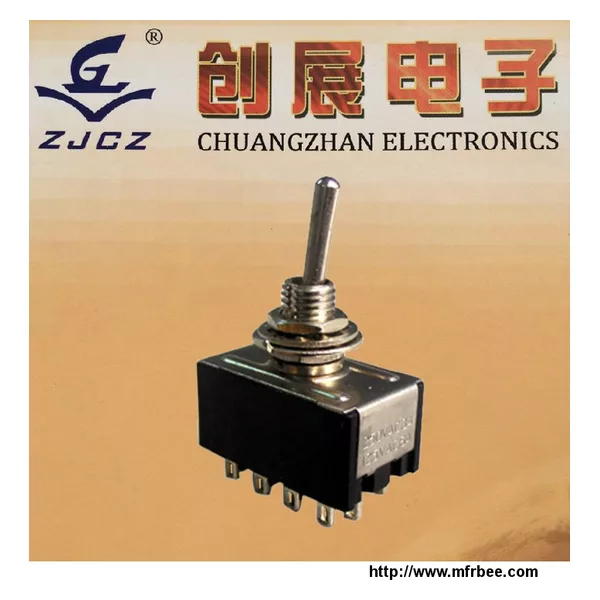

Mts Toggle Switch MTS-402
Product Quick Detail
- Place Of Origin
- 12
- Packaging
- Mts Toggle Switch MTS-402
- Delivery
- 15 Days
Specifications
SPEC DETAILS
Rating 3A 250V ,6A 125V AC
Contact Resistance 100MΩ Max
Insulation Resistance 500VDC 1000MΩ Min
Dielectric Strength 1000VAC 1 Minute
Operating Temperature - 25°c ~ +85°c
Electrical Life ≥ 10,000 cycles
Approvals CE ROHS TUV
Material Base (Bakelite) ,Handle and Terminal (Copper and Silver plated).Silver Contact
Base color Black,yellow,Brown
Circuitry Trait ON-ON, ON-OFF, ON-OFF-ON
