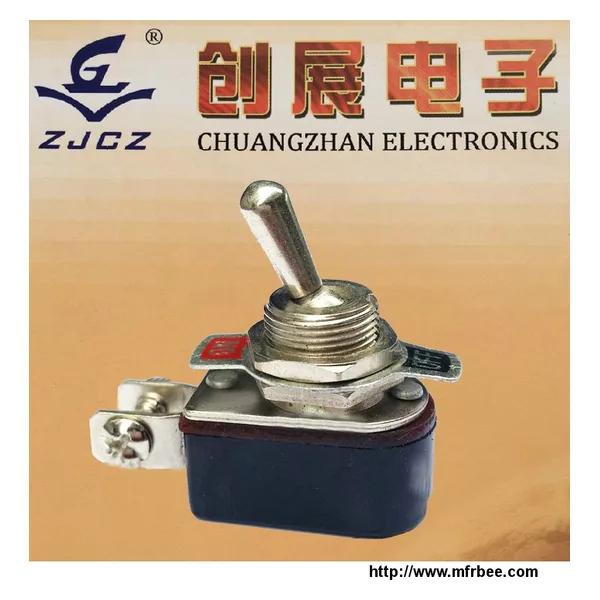

SPEC DETAILS
Rating 3A 250V ,6A 125V AC , 10A 12V DC
Contact Resistance 50MΩ Max
Insulation Resistance 500VDC 1000MΩ Min
Dielectric Strength 1000VAC 1 Minute
Operating Temperature - 25°c ~ +85°c
Electrical Life ≥ 10,000 cycles
Approvals CE ROHS TUV
Material Base (Bakelite) ,Handle and Terminal (Copper and Silver plated).Silver Contact
Base color Black,yellow,Brown
Circuitry Trait ON-OFF
