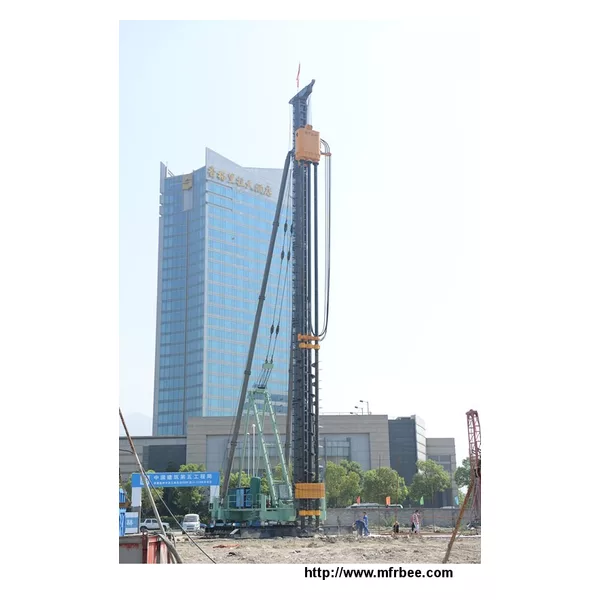

SMW65 Multi-drilling Machine
Product Quick Detail
- Quoted Price
- 965000
- Place Of Origin
- Hunan, China
- Packaging
- 1 set per shipment
- Delivery
- 75 Days
Specifications
SMW65 Multi-drilling Machine
Product General:
• Self-developed new generation of piling machine—SMW Multi-drilling Machine.
• Advanced design, logical framework, convenient operation.
• Hydrauli foot-step chassis with low grounding intensity of pressure and high-stability.
• Centralized electro-hydraulic control for convenient & safe operation.
• Man-machine engineering operation handle, button, display and monitor meter.
• New generation of ideal piling machine with low use & maintenance cost, high efficiency.
• Applicable to foundation construction of building, bridge, port, retaining structure for subway, and also water conservancy dam, coast anti-leakage project,etc.
Product Features：
Centralized electro-hydraulic control for convenient & safe operation.
Man-machine engineering operation handle, button, display and monitor meter.
New generation of ideal piling machine with low use & maintenance cost, high efficiency.
Product Parameter:
| Item | Unit | Model SMW65 |
|---|---|---|
| Drill diameter | mm | 650 |
| Drill stem quantity | 3 | |
| Drill stem diameter | mm | 219 |
| Central space between drill stem | mm | 490*490 |
| Drill depth | m | 30 |
| Motor power | kw | 55×2(4p/8p) |
| Drill stem rotate speed | r/min | 34/17.5 |
| Rated torque of single drill stem | kN.m | 30/60 |
| Drive mode | Motor top-driving | |
| Drill stem connection mode | He×agonal bolt | |
| Ma×. draw pile force | kN | 600 |
| Hydraulic system working pressure | Mpa | 16 |
| Column rail space | mm | 600 |
| Moving mode | Hydraulic foot-step | |
| Ma×. Longtitudinal pace | m | 1600 |
| Ma×.Transverse pace | m | 600 |
| Angle range | degree | 10 |
| Machine weight | t | 100 |
