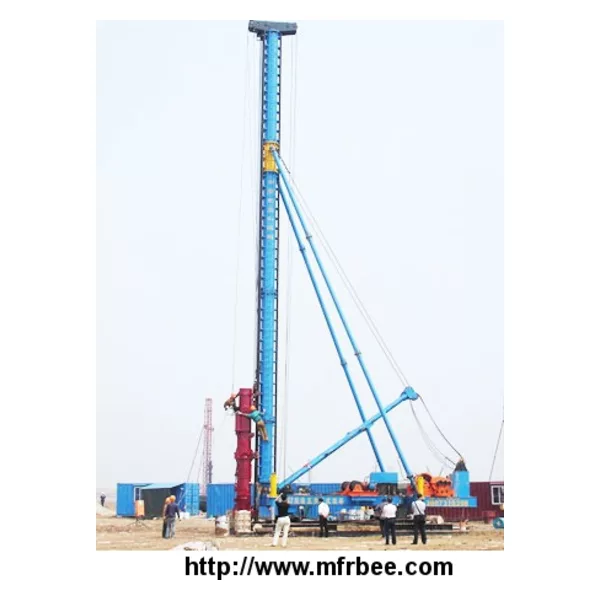

JBY62 Hydraulic Walking Pile Frame
Product Quick Detail
- Place Of Origin
- Hunan, China
- Quoted Price
- 785000
- Packaging
- 1 set per shipment
- Delivery
- 60 Days
Specifications
JBY62 Hydraulic Foot-Step Piling Rig
Product General:
• JBY series Foot-step Multi-functional Pile Rig could work with diesel hammer, hydraulic driving hammar, and long screw drill etc. It adapts to various technics of
foundation piling, and it is perfect upgrade product.
• Adopting of centralized electro-hydraulic controlling system, hydraulic foot-step chassis, hydraulic cylinder lifting, moving mechanism and rotary platform, moving quickly and agilely.
• Logical structure, advance technology, smooth operation, elegant appearance, high ratio of performance and price.
• Easy assembly & disassembly, quick & low-cost transportation.
• High adaptive faculty to construction ground with low intensity of pressure, quick pile connection, easy operation, safe & reliable, saving labour force, high efficiency.
Product Features：
Compared with traditional piling rig, such as rolling tube type, this machine has the characristics of logical structure, advanced technology, smooth operation, elegant appearance, and cost
effiective, etc.
Easily assemble and disassembale. The pillar can be rised and fell by itselft. The host machine can be assembled and disassembaled by the chasis, no need of the cooperation of large tonnage crane.
Adopting of centralized electro-hydraulic controlling system, hydraulic foot-step chasis, hydraulic cylinder lifting, moving mechanism and rotary platform, moving quickly and agilely. With much
ground contact area and low intensity of pressure of the long boat and short boat. High adaptive faculty to construction site, quick pile connection, easy operation, greatly shorten the
construction auxiliary operation time. Reducing the labor intensity of workers, saving labor about 3 to 4 person per shift. Working efficiency is twice than the traditional piling rig.
Product Parameter:
| Item | JBY62 | |
|---|---|---|
| Control System | Hydraulic control | |
| Pillar support | Three-point support | |
| Pillar height(m) | 22.5 | |
| Pillar diameter(mm) | 630 | |
| Pillar track dimension and space(mm) | 330×70/600×102 | |
| The inclination of pillar | 12/5 | |
| Gradeability | 3 | |
| Platform rotary angle | 0-360 | |
| Platform rotary speed | 15 | |
| Long boat moving speed(m/min) | 0-4.3 | |
| Long boat pace(mm) | 2000 | |
| Short boat moving speed(m/min) | 0-4.3 | |
| Short boat space(mm) | 600 | |
| Long boat ground intensity of pressure (mpa) | 0.036 | |
| Short boat ground intensity of pressure (mpa) | 0.048 | |
| Motor power(kw) | 22 | |
| Hydraulic pressure(mpa) | 16 | |
| Long boat dimension(m) | 10×1(L×W) | |
| Short boat dimension(m) | 3.76×2 | |
| Working dimension(m) | 11×6.76×25.5 | |
| Transportation dimension(m) | 10×3.04×2.15 | |
| Machine weight(t) | 58 | |
| Piling hammner | Diseal hammer | HD62 & below |
| Hydraulic hammer | HHP6 & below | |
| Vibrating hammer | Electric power | 90KW & below |
| Hydraulic power | SV80 & below | |
| Drilling machine | Long auger drill(mm) | 600 & below |
| Auger driller(mm) | 400 & below | |
| Ma×. drilling depth(m) | 20 | |
