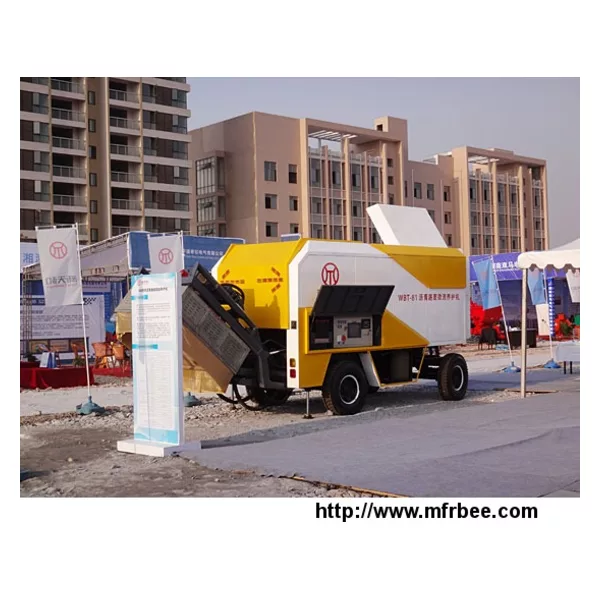

WB Series Asphalt Road Microwave Maintenance Car
Product Feature:
• WB series Asphalt Road Microwave Maintenance Car is the new self-developed product of high-tech. It adopts microwave heating principle, heating quickly & equably,
energe-saving & environmental protective, without any pollution.
• It is applicable to fast repair of asphalt high-way, cantonal road, airport runway, palaestra, and city square, etc. It repairs the hole, groove, crack, partial aging, convex surface etc. quickly
of high quality with heat regenerative technology. It is energy-saving of low cost and low emission with wide market foreground.
• WB series Asphalt Road Microwave Maintenance Car have two mode of trailer-mounted and truck-mounted. It operates stably, quickly and accurately by advanced PLC director and coloured touch
screen with self-developed control program of high integration level. It adopts Hertzian waves radiation shield technology to control the Hertzian waves radiation to low level of high
security.
Product Parameter:
Item | Model WBT-81 | |
---|---|---|
Machine parameters | Chasis | Hauling chassis |
Machine weight (t) | 5800 | |
Max. measurement (mm) | 5680*2020*2645 | |
Gradeability | 15 | |
Flip angle | 135 | |
Braking | Hauling braking | |
Walking speed (km/h) | 30 | |
Heater | Heating time (min) | 15-25 |
Heating depth (mm) | 200 | |
Heating size (mm) | 1380*1380 | |
Heater partition | 9 | |
Microwave cell quantity | 81 | |
Movement mode | Hydraulic multi-channel valve handle control | |
Microwave radiation | National standard ≦5mw/cm.centimetre | |
Generator (optional) | Model | Xingguang120GFL |
Output power of generator set | 120 | |
Control system | PLC | Omron PLC |
Touch screen | Human-computer interface | |
Temperature control | Omron temperature module | |
Spraying system | Storage capacity (L) | 12 |
Spraying power | Air compressor | |
Hydraulic pressure system | System pressure (Mpa) | 16 |
Cylinder quantity | 11 | |
Operating method | Manual multi-channel valve operation | |
Auxiliary storage (optional) | Tractor-mounted storage tank(mm) | 1800x800x500 |
Plate ram (optional) | Model | SxB-90 |
Weight (kg) | 100 | |
Centrifugal force (kn) | 13 | |
Plate length x width (mm) | 400x450 |
