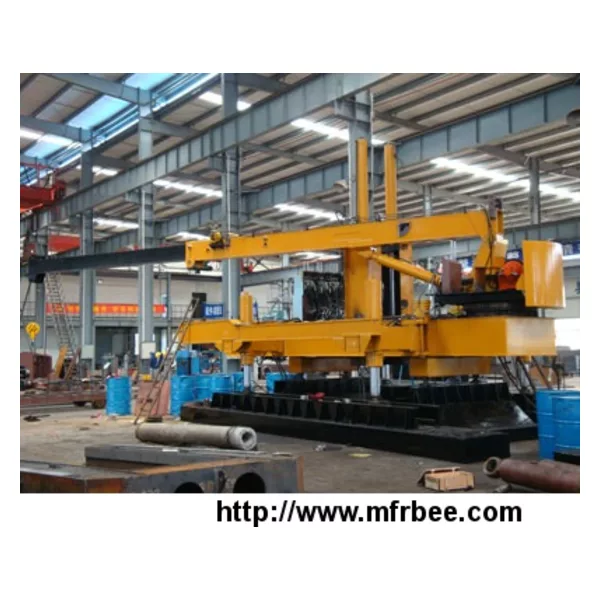

ZYC60B-B Multifunctional Hydraulic Static Pile Driver
Product Quick Detail
- Place Of Origin
- Hunan, China
- Contact Person
- Zhang yu
- Quoted Price
- $880000 RMB
- Contact No.
- +86-15197200133
- Packaging
- 1 set per shipment
- Delivery
- 15 Days
Specifications
ZYC60B-B Multifunctional Hydraulic Static Pile Driver
Product General:
• Main product: ZYC series multi-functional Hydraulic Static Pile Driver Self-developed with 5 up-to-date patents.
• The working principle is using hydraulic pressure to clamp precasted pile, H shape or other shape steel pile, and then driving the pile into ground by hydraulic pressing.
• Suitable for piling precast round & square concrete pile, H shape steel pile and other irregular-shaped pile in clay, soft soil and sandy ground.
• It has characteristics of no noise, no vibration, no pollution, clear ground with high speed of pile driving, reliable construction quality and environmental protection, high efficiency, energy saving. It is welcomed by the customers with wide market prospect.
5 up-to-date patents：
Flexible connection technology
Novel flexible connection technology of central axis, won national practical patent No. 200820158613.8.
Multi-functional piling technology
Original combination clamping piling and top piling won invention patent No. ZL02139875.5.
Inverted cylingder technology
Structure design of inverted cylinder changes strained condition of cylinder and increases the service life of cylinder, won national practical patent No. ZL01249443.7.
Integrative side and corner piling technology
Particular side and corner piling mechanism increasing the capability of side & corner piling and won national practical patent No. 200820158615.7.
Self-adaptive clamping mechanism
Original self-adaptive clamping mechanism won national practical patent No. 200820158614.2.
Product Parameter:
| Rated piling pressure(tf) | 60 | suitable pile & specification(mm) | 口200-口300 | |
| Max. Piling speed(m/min) | 4 | Max. Crane lifting weight(t) | 3 | |
| Piling stroke(m) | 1.4 | Hanging pile length(m) | 7 | |
| Max. Longitudinal pace(m) | 1.6 | Minimum side piling space(mm) | 400 | |
| Max. Transverse pace(m) | 0.4 | Minimun corner piling space(mm) | 800 | |
| Max. Rise stroke(m) | 0.6 | Rated hydraulic system pressure(mpa) | 15(14) | |
| Intensity of pressure(tf/m²) | 9.3/11.8 | Weight composition (t) | Host machine(t) | 30±1.0 |
| Hydraulic pump (Unit × Ml/Turn) | 1×63 + 1×25 | Counter weight(t) | 31.4 | |
| Motor power (Unit × kw) | 1×15 + 1×7.5 | Total weight(t) | 60 |
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Asia,Middle East,European Union
- Founded Year:2005
- Address:NO.6 Dazhong West Road, Jiuhua Economic Zone, Xiangtan, Hunan, China
- Contact:zhang yu
