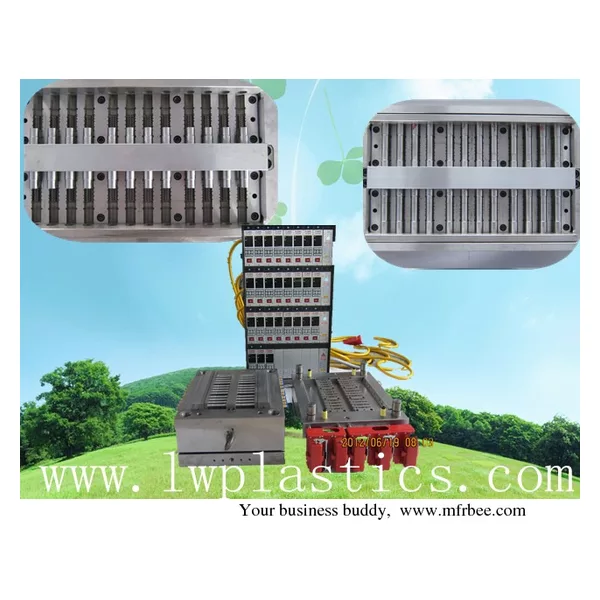

Inline Round Dripper Mould

Inline round dripper mould is a plastic injection mould used to produce round drippers which is used to be inserted into a PE pipe to form into round dripper dripline. The mould can adopt cold runner, hot runner or semi hot runner according to different request from customers.

Features for Round Dripper Mould :
1. The mould can adopt cold/hot/semi hot runner system.
2. The cavity board can be changeable, thus producing round drippers with different flow rates with the same mould.

3. The mould adopts S136H (HRC48-50) as cavity insert material and Japan Punch steel as mould core, which can ensure lifespan beyond one million shots.

4. The machining accuracy for the mould can reach 0.01mm, and roughness as Ra 00.8.

5. The dripper manufacture deviation Cu is less than 1%.

6. The deviation factor for dripper flow rate is less than 5%.

7. Mould is designed with 2D/3D drawing

8. Moulds can be designed according to clients’ request to dripper flow rate, diameter and length.

9. Mould base is of famous brand such as LKM.

10. Mould shot period is 9 to 12 seconds.

11.Water circulation is used for the mould cooling.
