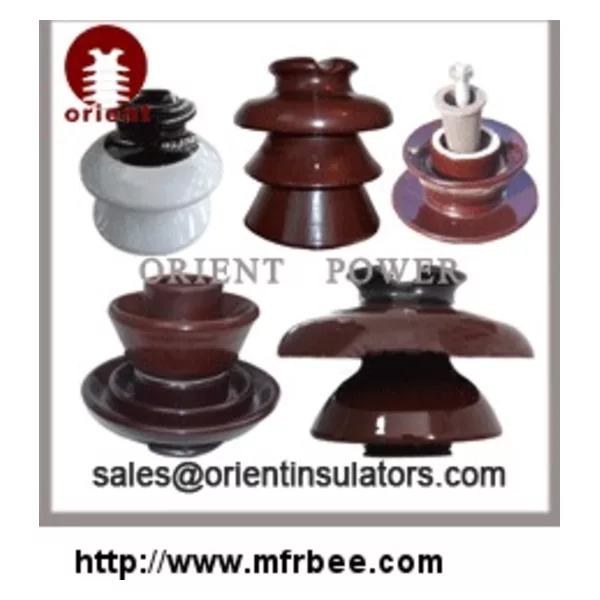

Pin insulator ANSI

Color: gray,white,brown
Standard: ANSI,IEC,IEC61109,IEC & ANSI,GB,BS,IEC62217,IEC60120,BS729,ANSI C29.11,GB/T,GB/T 19519,GB/T 19519

Application: power line,transmission line, overhead line
Supply Ability: 100000units/month

Packaging: wooden case,pallet

Delivery: 30 Days

Pin insulator ANSI is made by insulator manufacturers in China. Orient Power manufactures a wide range of low and high voltage Pin Insulator designed for distribution and sub transmission circuits.

The features of pin insulators

Highly resistant to lightning puncture, the versatile neck designs in “C, F, K and J,” side and top grooves, allow the acceptance of large-diameter conductors to permit easy tying. All neck sizes conform to industry standards allowing factory-formed ties to be used.

We are the prime manufacturer and exporter of pin insulators, which are featured with 11KV/22KV/33KV. The offered Pin Insulators ANSI are made of high-grade wet process and are normally brown glazed, which ensures their safety and efficiency.

Country: China (Mainland)
Business Type: insulator fittings,composite insulator,porcelain insulator
Market:worldwide
Founded Year:2011
Address:2306, Luomajiari, No.6, Guotai Road
Contact:Summer Shao
