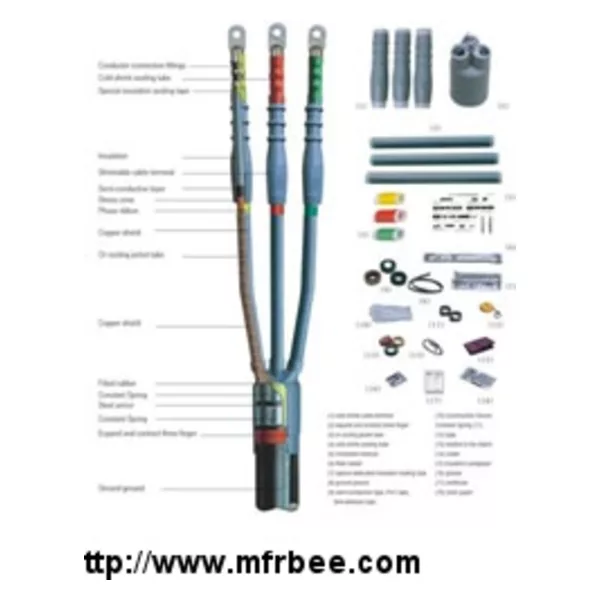

Full Cold Shrinkage Cable Accessories Series

Full Cold Shrinkage Cable Accessories Series

Product Feature:

1.Reliable capability

It is made from imported-SiR (Silicon Rubber) with satisfying electric insulation, outstanding elasticity tracking resistance, corrosion resistance etc, as well as approved electric capability and long-term service-life. It can exert modest radial pressure upon the cable all the time to make the contact compact after installing.

Also it will expand or shrink simultaneously with the cable to avoid tip-and-run breakthrough caused by the working cable’s respiration. The stresscone and primary insulation are composite as one to ensure insulation reliable and performing safe by solving the problem of the stress concentration on the contour of the semiconductive layer.

2.Simple and convenient installation

By use of the special cold shrinkage technique invented by Histe Co., Ltd, one with no special training can fix it without the assistant of fire, electricity. The process is simple and labor-saving.

It is adequate for aloftwork, fieldwork and works in the combustible environment in particular, such as , coal mine, oilfield and under-well. Thus greatly reduces the quality accidents caused by improper operation.

3.Excellent chemical capability

Feculence-resistance, alkali resistance, ageing resistance , perfect hydrophobic performance, superior heat and cold resistance are included. The proper working temperature ranges from -70℃ to +120℃. Therefore this product can be specially used in high-altitude, cold, humid, saline and foggy regions as well as heavy polluted areas.

24kV Full cold shrinkable cable accessories technical data

Product name

test name

standard requirement

result

remarks

35kV indoor,outdoor termination and intermediate connectors

p.f withstand voltage test

105kV no flash and no breakdown

105kV no flash and no breakdown

passed

test of partial discharge

39kV when the discharge amount of ≤ 10pC

39kV under the combination of sample

Discharge amount for 4pC

passed

load circulation test

5h heated,3h cooled,conductor

heated to 90~95℃

Conductor heated to 95 to 100 ℃

Each cycle is 8h, which add

Heat 5h cooling 3h, a total of three cycles

as follows

partial discharge test

39kV when the discharge amount of ≤ 10pC

39kV under the combination of sample

Discharge amount for 4pC

passed

Impulse voltage test

250kV,on negative and positive poles

applied each 10times, one flashover is

allowed but not calculated

250kV,on negative and positive poles

applied each 10times, one flashover is

allowed but not calculated.

passed

test of the negative pole

156kV,15min no flash and no breakdown

156kV,15min no flash and no breakdown

passed

Power voltage test

104kV,4h no flash and no breakdown

104kV 4h no flash and no breakdown

passed

Table of specification of 24kV cold-shrinkable terminal cable accessories

Product Name Type

Suit for Cable Cross Section

(mm2 )

24kV 1 core cold shrink indoor termination NLSY -24/1.1 25-50

NLSY -24/1.2 70-120

NLSY -24/1.3 150-240

NLSY -24/1.4 300-400

NLSY -24/1.5 500-630

NLSY -24/1.6 800

NLSY -24/1.7 1000

24kV 3 cores cold shrink indoor termination NLSY -24/3.1 25-50

NLSY -24/3.2 70-120

NLSY -24/3.3 150-240

NLSY -24/3.4 300-400

NLSY -24/3.5 500-630

NLSY -24/3.6 800

NLSY -24/3.7 1000

24kV 1 core cold shrink outdoor termination WLSY-24/1·1 25-50

WLSY-24/1·2 70-120

WLSY-24/1·3 150-240

WLSY-24/1·4 300-400

WLSY -24/1.5 500-630

WLSY -24/1.6 800

WLSY -24/1.7 1000

24kV 3 core cold shrink outdoor termination WLSY-24/3·1 25-50

WLSY-24/3·2 70-120

WLSY-24/3·3 150-240

WLSY-24/3·4 300-400

WLSY -24/3.5 500-630

WLSY -24/3.6 800

WLSY -24/3.7 1000

24kV 1 core intermediate connector JLSY-24/1·1 25-50

JLSY-24/1·2 70-120

JLSY-24/1·3 150-240

JLSY-24/1·4 300-400

JLSY-24/1·5 500-800

24kV 3 core intermediate connector JLSY-24/3·1 25-50

JLSY-24/3·2 70-120

JLSY-24/3·3 150-240

JLSY-24/3·4 300-400

JLSY-24/3·5 500-800
