Hexagonal Wire Netting
Product Quick Detail
- Place Of Origin
- China
- Packaging
- as request
- Delivery
- 15 Days
Specifications

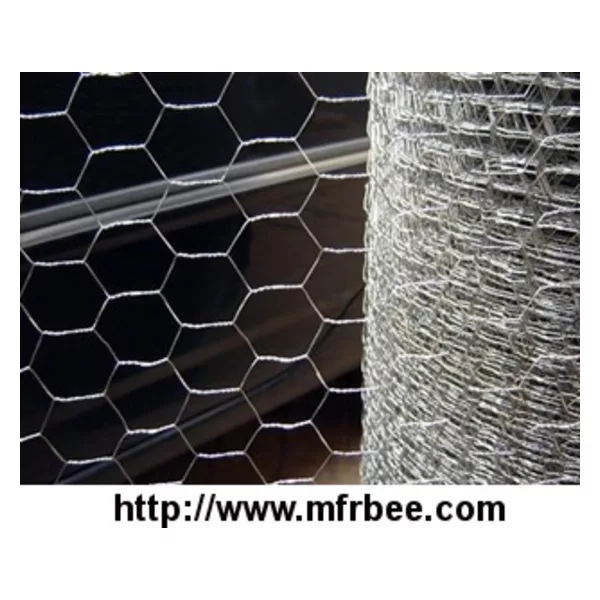

Hexagonal wire mesh (Chicken/Rabbit/Poultry Wire) is made of low carbon Iron Wire, the mesh is firm in structure and has flat surface. It is extensively used in INDUSTRIAL AND AGRICULTURAL CONSTRUCTUONS AS REINFORCEMNET AND FENCING. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc.
DIN1200, EN 10233-Z:1997, BS1485:1993)
Hex. wire netting, hot-dipped after weaving
Hex. wire netting, galvanized before weaving
Hex. wire netting, galvanized after weaving
Hex. wire netting, pvc-coated
Hex. wire netting of stainless steel
Hex. wire netting in normal twist
Hex. wire netting in reverse twist
| Galvanized hexagonal wire netting | |||||
| mesh |
Min. Gal.v.
G/SQ.M |
Width |
Wire Gauge (Diameter)
BWG |
||
|
Inch |
mm | Tolerance(mm) | |||
| 3/8" | 10mm | 1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | 1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | 2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | 3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | 3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1-1/4" | 31mm | 4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 1-1/2" | 40mm | 5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | 6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
| 2-1/2" | 65mm | 7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
| 3" | 75mm | 8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
| 4" | 100mm | 8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Note:
1.)The above tolerance comply with standard EN10223-2:1997; 2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
| PVC Coated Hexagonal Wire Netting | |||
| Mesh | Wire Gauge (MM) | Width | |
| Inch | MM | - | - |
| 1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
| 3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
| 1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
| 1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
| 1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
| 2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
| Five Star also offer other specifications you need |
Note: The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers' request;
Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic)
