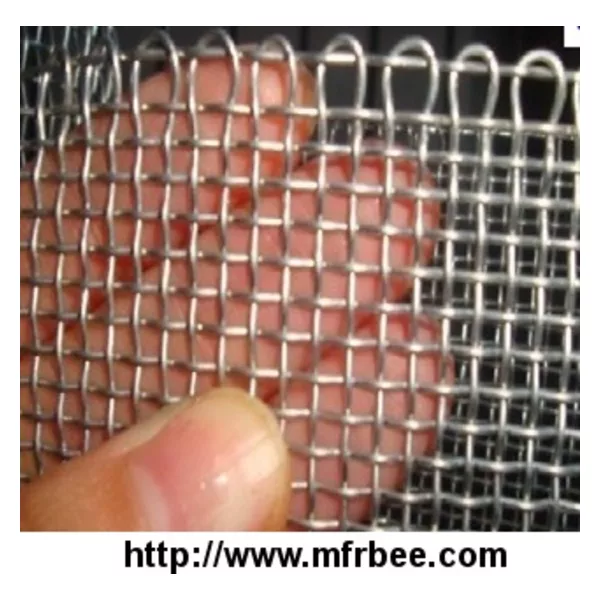

Woven Wire Mesh
Product Quick Detail
- Place Of Origin
- China
- Packaging
- as request
- Delivery
- 15 Days
Specifications
Woven wire including many type :crimped wire mesh ,galvanzied square wire mesh and stainless steel wire mesh and window screen .
Woven wire mesh sintered filter screen is overlapped and stacked up by 2 or 3 layers of plain dutch woven wire mesh with equal hole size, after vacuum sintering, pressurizing and rolling.
1. Strength: As fourth and fifth layers do support, with high mechanical strength and compressive strength.
2. Easy to clean: As a result of surface of the filter material, having means for cleaning characteristics, especially suitable for backwashing.
3. Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.
4. High temperature: 480 °C can withstand high temperatures.
5. Corrosion resistance: As a result of SUS316L, 304 materials, the corrosion resistance.
6. Filtration: Filtration range of 1μm-200μm, has a reliable filter performance.
7. Stability: Because there are two layers to do to protect the screen, plus solid melting diffusion sintering process which make filters is not easily to deform.
2.Material:black wire, white wire, galvanized wire, galvanized wire, high-manganese steel wire, stainless steel wire and other non-ferrous metal wire, stainless steel wire and other non-ferrous metal wire.
3.Application:Crimped wire mesh:
Used in mining ,coal, buliding decoration,petrochemicals,construction machinery.
Galvanized /stainless steel square wire mesh
Used as window screen , industrial sieves in sugar, chemical, stone crusher industries, also in sieving grain.
4.Specification
| woven wire mesh | ||||||
| mesh/inch |
wire diameter mm |
aperture mm |
mesh/inch |
wire diameter mm |
aperture mm |
|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 | |
| Width of Stainless Steel Wire Mesh: 0.6m-1.5m |
5.Packaging
Woven wire mesh can be packed with pallet and roll , is packed with moisture-proof paper inside and wrapped with plastic film outside. Pallet and wooden box can be used
