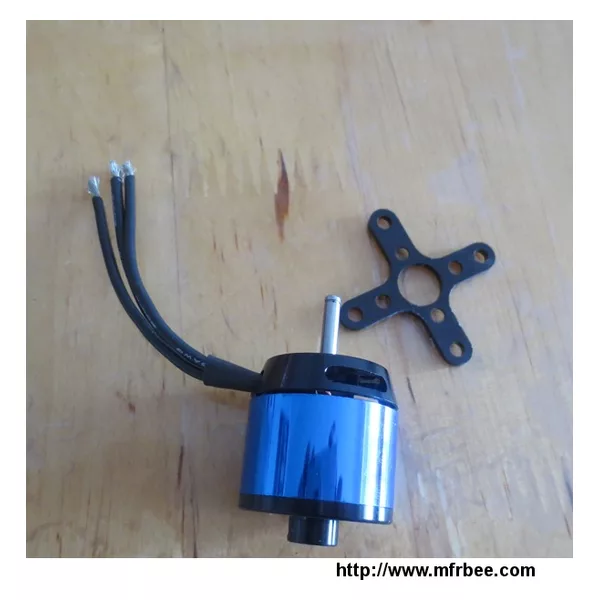

Out runner Brushless Motors
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Packaging
- cartons
- Delivery
- 20 working Days
Specifications
|
Motor Diameter: |
28mm |
| Motor Length: | 32mm |
| Shaft Diameter: | 3.17mm |
| Shaft Length: | 14mm |
| Weight: | 57g |
| Mounting Hole Size: |
M3.0, pitch 16mm M3.0, pitch 19mm |
| Mounting Hole Depth: | 3mm Max. |
| Order Name | RPM/V | No-load Current (7.4V) | Max. Amps | Batteries | Propeller |
| A20-20L | 1050 | 1A | 19A | 3S Lipo | 10*4.7 |
| A20-22L | 924 | 1A | 17A | 3S Lipo | 10*4.7 |
