YD Series AC Hipot Tester

Place Of Origin
China
Packaging
Standard wooden case and carton
Delivery
15 Days

YD Series Hipot Tester

Introduction:

YD Series Hipot Tester is applied to test the insulation ability of electric power equipments and insulation materials at power frequency high voltage. The insulation test result of the tester is go or not go.

Also the

YD Series Hipot Tester is a universal power source in HV test. The maximum output voltage and capacity could be customized according the requirements of custom.

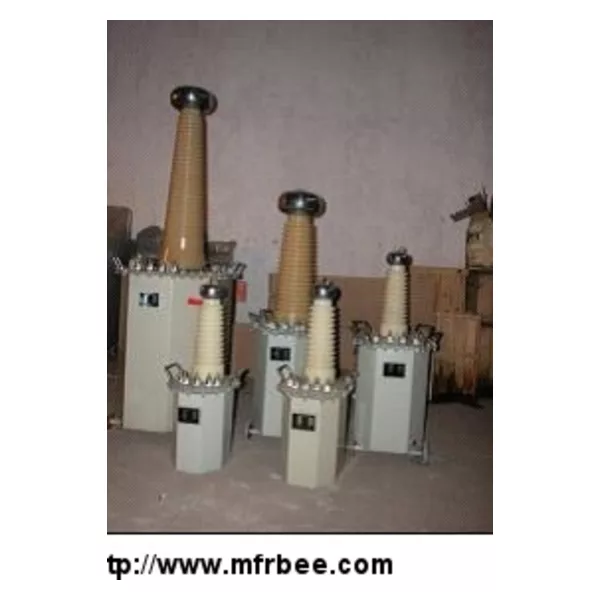

YD Series Hipot Tester is consists of single HV transformer and main control box. There are two kinds of HV transformer according to the insulation materials of the HV transformer. They are dry HV transformer and oil HV transformer. For the dry HV transformer the insulation material is epoxy resin. For oil HV transformer the insulation material is insulation oil. The dry HV transformer has a smaller size and less weight than oil HV transformer. But the maximum output voltage is less than 100kv for dry HV transformer. The functions of the main control box are voltage output regulation, protection in emergency and voltage/current value indication
