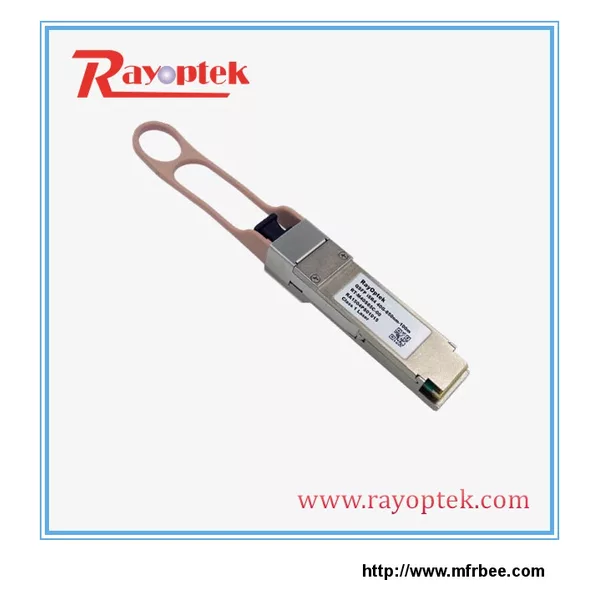

Network 100m 40G SR4 QSFP 850nm Optic Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Application
- 40G Ethernet/ 40G
- Connector
- MPO
- Datarate
- 40Gb/s
- Distance
- 100M
- Transceiver Type
- QSFP+
- Wavelength
- 850nm
- Operating Temperature
- 0 C to 70 C
- Product
- 40G QSFP+ Transceiver
- Media
- MMF
- DDM/DOM
- yes
- Packaging
- 10 or 20PCS /Plastic tray
- Delivery
- within 7~10 working days
Specifications
Product Description
The Rayoptek RT-M40S85C-00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array.An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ iSR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
The Rayoptek RT-M40S85C-00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array.An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ iSR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Feature
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function
Product Specification/Models
Part Number Product Description
RT-M40S85C-00 4X10.3G QSFP+ iSR4, MPO connector, 5DDM,100M on OM3
Part Number Product Description
RT-M40S85C-00 4X10.3G QSFP+ iSR4, MPO connector, 5DDM,100M on OM3
Application
InfiniBandQDR, DDR and SDR
Proprietary High Speed Interconnections
Datacenter
InfiniBandQDR, DDR and SDR
Proprietary High Speed Interconnections
Datacenter
