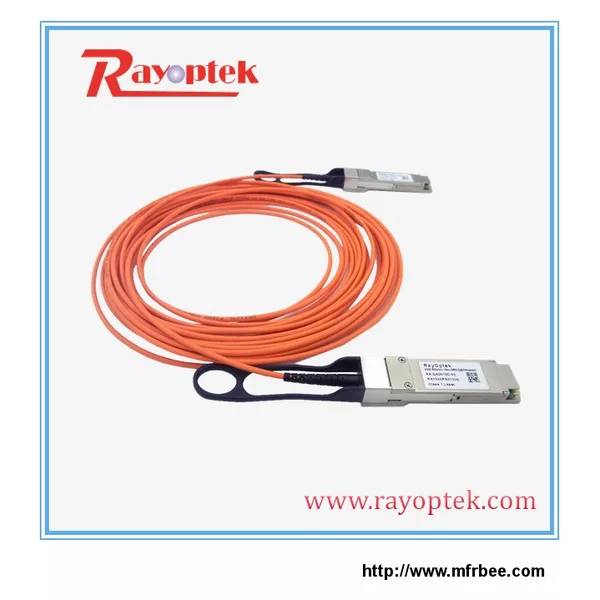

Telecom Networking AOC 40G QSFP+ Active Optic Cable
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Application
- 40G Ethernet/ 40G
- Connector
- QSFP+AOC
- Datarate
- 40Gb/s
- Distance
- 1~300M
- Transceiver Type
- QSFP+
- Fiber Type
- Optic Fiber
- Operating Temperature
- 0 C to 70 C
- Product
- 40G QSFP+AOC
- Media
- OM3
- Length
- 1m 2m 3m 4m 5m or customizted
- Packaging
- 10 or 20PCS /Plastic tray
- Delivery
- within 7~10 working days
Specifications
Product Description
The RayOptek QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber
channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
The RayOptek QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber
channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.RayOptek QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.RayOptek QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Product Feature
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Product Specification/Models
Part Number Product Description
RA-Q40NXXC-00 40Gb/s QSFP+ Active Optical Cable
Part Number Product Description
RA-Q40NXXC-00 40Gb/s QSFP+ Active Optical Cable
Application
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel
