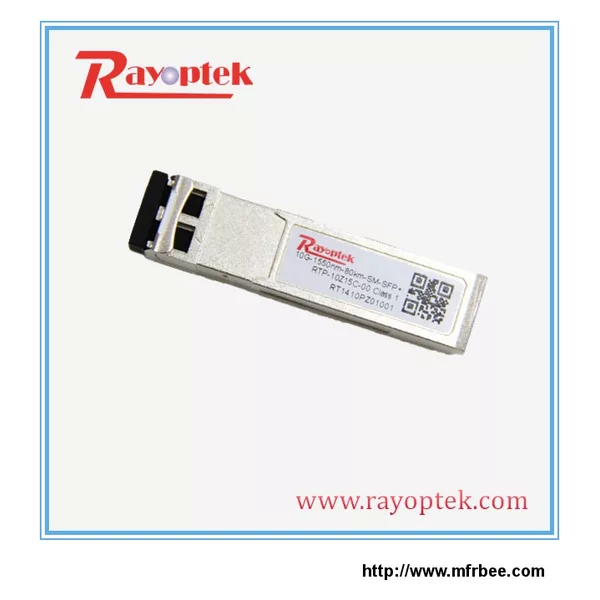

10GB-ZR Ethernet SFP+ 10G 80km Single Mode Optic Module
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Application
- 10 Gigabit Ethernet
- Connector
- LC
- Datarate
- 10G
- Distance
- 80KM
- Transceiver Type
- SFP+
- Wavelength
- 1550nm
- Operating Temperature
- 0 C to 70 C
- Product
- 10G SFP+ZR
- Media
- SMF
- DDM/DOM
- yes
- Packaging
- 10 or 20PCS /Plastic tray
- Delivery
- within 7~10 working days
Specifications
Product Description
RAYOPTEK's SFP+ ZR transceivers is 1550nm cooled EML laser and APD photo-detector receiver based 10Gigabit SFP+ transceiver, which is designed to transmit and receive optical data over single mode optical fiber for link length up to 80km.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
RAYOPTEK's SFP+ ZR transceivers is 1550nm cooled EML laser and APD photo-detector receiver based 10Gigabit SFP+ transceiver, which is designed to transmit and receive optical data over single mode optical fiber for link length up to 80km.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Product Feature
1550nm cooled EML, APD Receiver
Up to 80km on 9/125um SMF
SFP+ MSA package with duplex LC connector
SFI High Speed Electrical Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Case temperature range: 0 to 70 .
2-wire interface for management and diagnostic monitor
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW
Power dissipation < 1.5W
1550nm cooled EML, APD Receiver
Up to 80km on 9/125um SMF
SFP+ MSA package with duplex LC connector
SFI High Speed Electrical Interface
Very low EMI and excellent ESD protection
+3.3V single power supply
Case temperature range: 0 to 70 .
2-wire interface for management and diagnostic monitor
10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW
Power dissipation < 1.5W
Product Specification/Models
Part Number Product Description
RT-P10Z15C-00 1550nm, 10Gbps, LC, 80km, SFP+ZR, 0°C~+70°C
Part Number Product Description
RT-P10Z15C-00 1550nm, 10Gbps, LC, 80km, SFP+ZR, 0°C~+70°C
Application
10G Base-ZR/ZW
10G Fiber Channel
10G Storage system
10G Base-ZR/ZW
10G Fiber Channel
10G Storage system
Other Information
STANDARD
Compliant to SFF-8431 and SFF-8432
Compliant with SFF-8472
Compliant with IEEE 802.3ae 10GBASE-ZR and 10GBASE-ZW
Compliant with IEC 60825-1 Class 1 laser eye safe
RoHS Compliant
STANDARD
Compliant to SFF-8431 and SFF-8432
Compliant with SFF-8472
Compliant with IEEE 802.3ae 10GBASE-ZR and 10GBASE-ZW
Compliant with IEC 60825-1 Class 1 laser eye safe
RoHS Compliant
