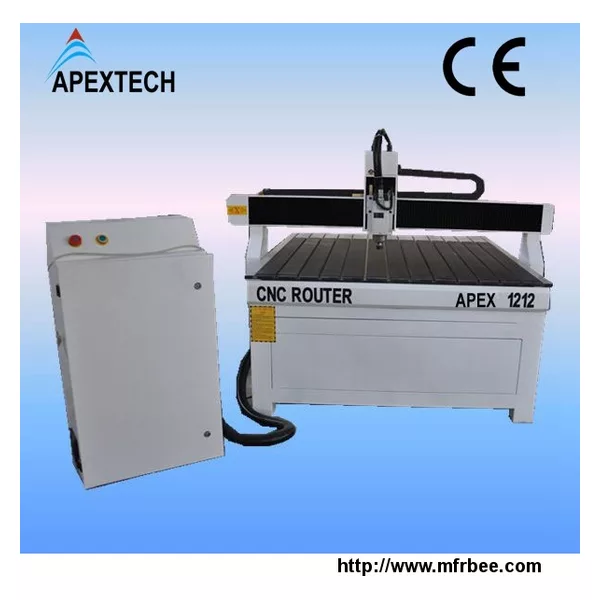

APEX1212 advertising making with stepper motor driver
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- FOB Price
- USD $3,980.00 / Piece
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
Features
1. Entire solid steel frame structure, can resist vibration (tempering) treatment, with good rigidity and no
deformation in the long run;
2. High-frequency 1.5kw/2.2kw watercooling/ aircooling spindle;
3. Mach3/DSP/NCstudio controller;
4. Manual Tool Calibration;
5. Hiwin square guide rail from Taiwan, with huge bearing capacity, smooth operation, high precision and
long service life;
6. With strong compatibility with a series of CAD/CAM design and fabrication software such as type3/
artcam /artcut.
Parameter
All of these models can be customized according to customer requirements.
| NO. | Description | Parameter |
| 1 | X,Y,Z working area | 1200*1200*100mm |
| 2 | Drive and motor | Yako stepper motor/driver |
| 3 | Spindle | 1.5kw / 2.2kw watercooling spindle |
| 4 | Inverter | Delta frequency inverter |
| 5 | Control system | NCstudio/ Mach3/DSP controller |
| 6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
| 7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| 8 | X, Y, Z structure | Taiwan TBI Ballscrew, Hiwin square rails on X, Y, Z axis |
| 9 | Max Rapid Travel Rate | 10,000mm/min |
| 10 | Max working speed | 8,000mm/min |
| 11 | Working voltage | AC220V, single phase |
| 12 | Command languages | G code |
| 13 | Running Environment Temperature | 0 degree - 45 degree |
| 14 | Software | Type3 English version; Artcam English version |
| 15 | Net weight | 500KGS; |
| 16 | Gross weight | 700KGS. |
| 17 | Relative Humidity: | 30% - 75% |
| 18 | Guarantee | One year from the date of commission |
| 19 | Optional Accessories | ①Rotary system ②Mist-cooling system ③Dust collector/ Dust hoods for three axis |
