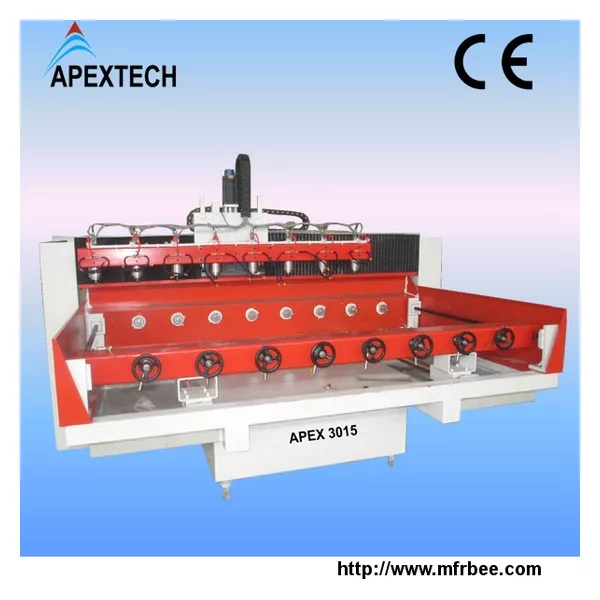

APEX3015-8 spindles, 8 rotary device made in china
Product Quick Detail
- FOB Price
- USD $21,350.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
Parameter
All of these models can be customized according to customer requirements.
| NO. | Description | Parameter |
| 1 | X,Y,Z working area | 3000*1500*200mm |
| 2 | Drive and motor | Stepper/servo model |
| 3 | Spindle | 2.2kw watercooling spindle |
| 4 | Inverter | Fuling frequency inverter. |
| 5 | Control system | NCstudio/ Mach3/DSP controller |
| 6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
| 7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| 8 | Zaxis structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
| 9 | X, Yaxis structure | Rack and pinion, Hiwin square rails on X, Y axis |
| 10 | Max Rapid Travel Rate | 30,000mm/min |
| 11 | Max working speed | 18,000mm/min |
| 12 | Working voltage | AC220V/380V, three phase |
| 13 | Command languages | G code |
| 14 | Running Environment Temperature | 0 degree - 45 degree |
| 15 | Software | Type3 English version; Artcam English version |
| 16 | Net weight | 1800KGS; |
| 17 | Gross weight | 2000KGS; |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Guarantee | One year from the date of commission |
| 20 | Rotary device | 8 rotary device for cylinderical material |
|
21
|
Optional Accessories |
①Mist-cooling system
②Dust collector/ Dust hoods |
Youtube links:
NO.1 apextech cnc with 8 spindles and 8 rotary device, router cnc
NO.2 apextech cnc router with 10 spindles and rotary chair legs
NO.3 apextech router cnc with rotary axis machine
NO.4 jinan apextech router machinery with rotary device as the 4th axis
- Country: China (Mainland)
- Business Type: http://www.apex-cnctech.com/ Jinan APEX CNC Technology Co., Ltd is a professional manufacturer specializing in exporting CNC router, CNC plasma cutting machine, laser cutting machine, cuttting plotter. APEX CNC products are widely used in many industries
- Market:the global market,Emerging Markets
- Founded Year:2009
- Address:Xinxu industrial Park, jinan, china
- Contact:Chris Chen
