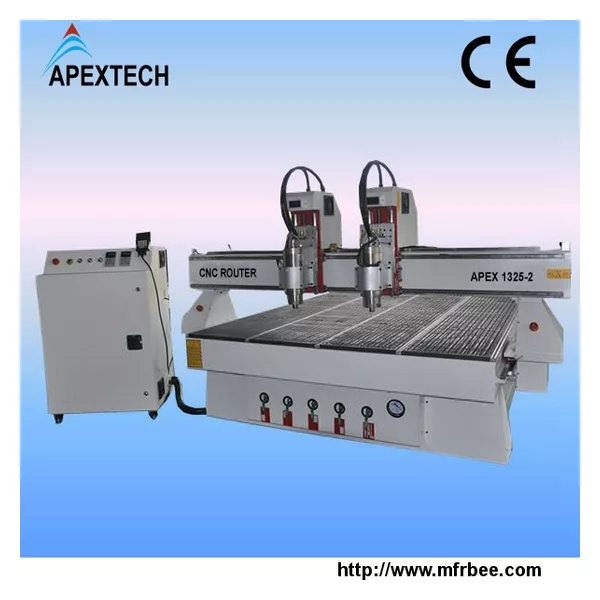

APEX1325-2 heads (independent z axis)
Product Quick Detail
- FOB Price
- USD $13,560.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
Parameter
All of these models can be customized according to customer requirements.
| NO. | Description | Parameter |
| 1 | X,Y,Z working area | 1300*2500*200mm |
| 2 | Drive and motor | Stepper/servo model |
| 3 | Spindle | 2.2kw/3kw/4.5kw watercooling spindle |
| 4 | Inverter | Delta frequency inverter; Fuling frequency inverter |
| 5 | Control system | NCstudio/ Mach3/DSP controller |
| 6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
| 7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| 8 | Zaxis structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
| 9 | X, Yaxisstructure | Rack and pinion, Hiwin square rails on X, Y axis |
| 10 | Max Rapid Travel Rate | 30,000mm/min |
| 11 | Max working speed | 18,000mm/min |
| 12 | Working voltage | AC220V/380V, single/three phase |
| 13 | Command languages | G code |
| 14 | Running Environment Temperature | 0 degree - 45 degree |
| 15 | Software | Type3 English version; Artcam English version |
| 16 | Net weight | 1700KGS; |
| 17 | Gross weight | 1900KGS; |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Guarantee | One year from the date of commission |
|
20
|
Optional Accessories |
①Rotary system
②Mist-cooling system ③Dust collector/ Dust hoods ④Vacuum pump |
Application
Wood-working Industry:Kitchen Doors, Musical Instrument, Windows, etc;
Furniture Industry: Cabinet,Office Furniture, Panel Furniture,Wood Door, etc;
Suitable Material: Solid Wood, Panel, Acrylic, Plexiglass, Wood,MDF, Plastic, Copper, Aluminum, etc.
Youtube links:
- Country: China (Mainland)
- Business Type: http://www.apex-cnctech.com/ Jinan APEX CNC Technology Co., Ltd is a professional manufacturer specializing in exporting CNC router, CNC plasma cutting machine, laser cutting machine, cuttting plotter. APEX CNC products are widely used in many industries
- Market:the global market,Emerging Markets
- Founded Year:2009
- Address:Xinxu industrial Park, jinan, china
- Contact:Chris Chen
