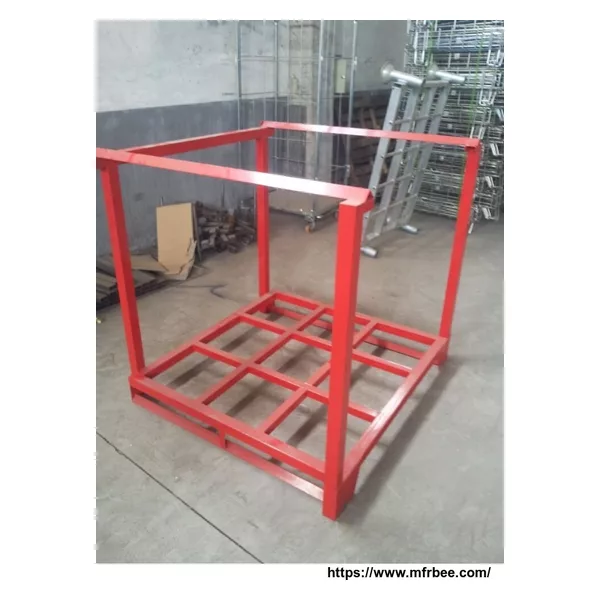

Specifications of tire pallet rack
Model NO. | HML-SR-7272WM |
Features |
STACKING TIRE RACK FOR PASSENGER AND
LIGHT TRUCK TIRES WITH WIRE MESH DECKING |
Dimensions
(L x W x H) |
72" X 72" X 72" |
1830 X 1830 X 1830 mm | |
Tire capacity | 42 to 63 |
Load capacity | 2400 lb. / 1100 kg |
Max. Stacked (open) | 4 |
Max. Stacked (closed) | 20 |
Weight | 172 lb. / 78 kg |
Colour | Many Options |
Main features of tire pallet rack
1.Ideal solution for palletized cargo.
2.eliminates the need for wooden pallets for loose cargo.
3.customized to suit your products and storage environment.
4.assembled and disassembled within seconds.
5.When not in use can be stowed away in less than 10% of space
6.No maintenance required
7.Available finishes including galvanized ,hot dip galvanized or powder coating.
Specifications of tire pallet rack Similar design, defferent sizes Model No. Exterior Dimension Tire capacity Loading Capacity Max. Stacked Max. Stacked LxWxH pcs kg open closed HML-6060 60"x60"x60" 24 to 32 1100 kg 4 20 HML-7272WM 72"x72"x72" 42 to 63 1100 kg 4 20 HML-8080 ...
