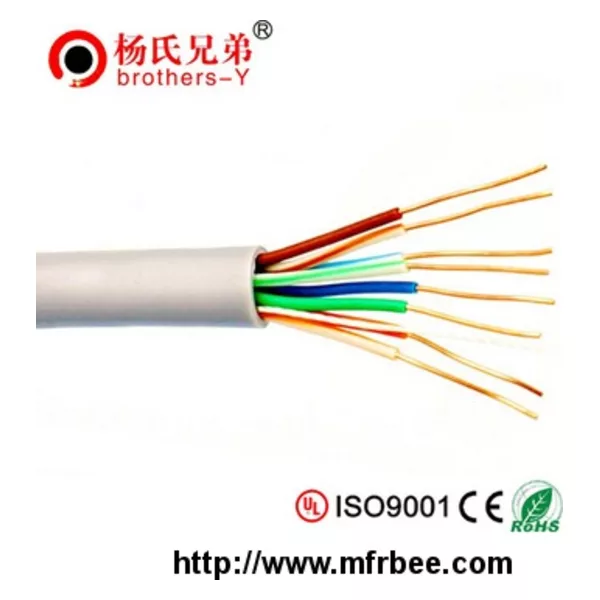

cat5e utp network cable 1000ft

Specifications

cat5e utp network cable 1000ft
1. 24/26/28AWG(solid&strand)
2. High Degree PE Insulation
3. CE UL RoHs
4. Factory Supply

Shenzhen Brother Young Development Co., ltd was established in 2002 and is a professional designer and manufacturer of copper cable, coaxial cable and fiber cable. Our products include full sets of network accessories and all kinds of cables & network layout projects.

cat5e utp network cable 1000ft

Structure:

Conductor: Solid/stranded wire CU/CCA/CCS

AWG: 24/26/28AWG

Twisted pair: 4

Shield: Pe-Tape + Al foil

Drain wire: Solid Tinned copper

Insulation: HDPE

Jacket: PVC

Rip cord: Per request

Rated Temperature: 60cF, 75 cF, (140 TF, 167 TF)

Electrical Characteristic:

Impedance (ohms): 100 ohm+/- 15 ohm

1.0-350.0MHz Delay Skew (ns/ 100m ): <=45;

Pair-to-Ground Capacitance Unbalance (pF/ 100m ): <=330;

Max. Conductor DC Resistance 20oC (ohms/km): 93.8;

Resistance Unbalance (%): <=5%

Standard:

UL accepted TIA/ EIA 568A /EIA 568B, ISO/IEC 11801

Flame resistance level:

CMX. CM, MP, CMG, MPG, CMR, MPR

Packing:

305meters/roll/box, 3box/carton;

Weight: 6.8~8.8KG/Box

Other:

Applicable to network for audio and (ISDN), 10Base-T, 100 Base-T4, 100Base-TX, 100VG-Any LAN, 155Mbps ATM, 622Mbps ATM TPDDI Fast speed and Extreme Networks.

OEM is available, we can give you competitive price , high quality products and excellent service through our cooperation
