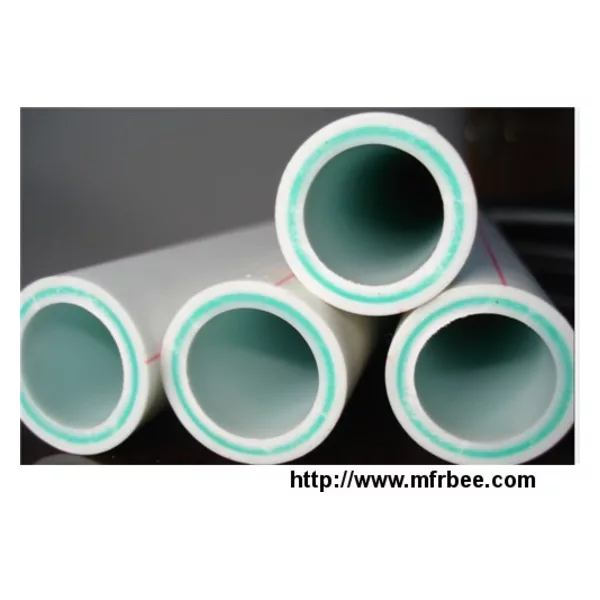

Feature of PP-R Fiber Pipe
1.Lower coefficient of linear expansion---less than 0.045mm/mk, which is only 30% of PPR Pipe's, and this is similar with PP-R stable composite pipe;
2. Good rigidity and stability;
3. High impact resistance in low temperature;
4. High pressure resistance, which is 25% more than PPR pipe in the same condition;
5. Link by welding, safe and reliable;
6. Inner layer is pure PP-R material with smooth surface.
Technical Parameter of PP-R Fiber Pipe
Pipe Series SDR7.4/S3.2/PN16
Pipe Series SDR6 /S2.5/PN20
Code Number | Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
18020 | 20 | 20 | 2.8 | 14.4 |
18025 | 25 | 25 | 3.5 | 18.0 |
18032 | 32 | 32 | 4.4 | 23.3 |
18040 | 40 | 40 | 5.5 | 29.0 |
18050 | 50 | 50 | 6.9 | 36.2 |
18063 | 63 | 63 | 8.6 | 45.6 |
Code Number | Nominal Outer Diameter | Diameter | Wall Thickness | Inner Diameter |
19020 | 20 | 20 | 3.4 | 13.2 |
19025 | 25 | 25 | 4.2 | 16.6 |
19032 | 32 | 32 | 5.4 | 21.2 |
19040 | 40 | 40 | 6.7 | 26.6 |
19050 | 50 | 50 | 8.3 | 33.4 |
19063 | 63 | 63 | 10.5 | 42.0 |
The production process of PPR fiberglass pipe is to immerse the glass fiber into resin and be formed in the high-speed polymerization device integrating light and electricity, through co-extrusion, the inside and outside layers are coated with Polypropylene material. We have ...
