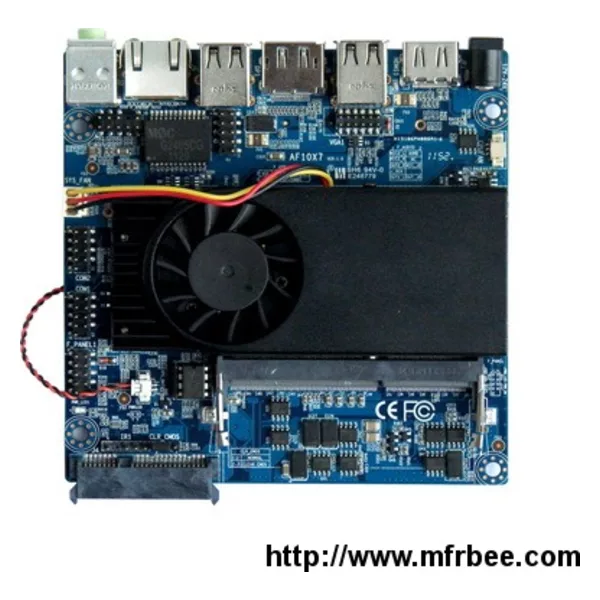

2031-1 ITX-HCM2S21F Nano ITX motherboard

CPU AMD eOntario T56N, dual core 1.6G,18W, M1 FCH processor

Chipset AMD Husdon

Memory 1 * SO DIMM DDR3 800/1066MHz of memory up to 4GB

Graphics •Integrated AMD HD Graphics 6310 with UVD3.0 Decode, support DirectX11, 1080i, 1080P and H.264. VC-1, MPEG-G etc high definition player.

Audio Realtek ALC883, support 2/4/5.1/7.1 HD sound channel

LAN 1* Realtek 8111E,10/100/1000M, support PXE

Storage Interface 1* Notebook SATA 3Gb/s with power

Expansion Slots 1*MINI PCI-E slot for SSD, 1*Mini PCIE for wifi

USB 6*USB 2.0(4 pcs on the back panel,2 pcs via the USB brackets connected to the internal USB headers)

Internal

I/O Connectors 1 x F_PA NEL header

1 x CPU_ FAN header

1 x SYS_FA N connector

1 x Front Audio header

1 x USB 2.0 header

2 x COM headers

1 x VGA header

1 x SATA header with Power

2 x MINI_PCIE connectors

1 x SPEA KER header

1 x CLR_ CMOS header

1 x IR header

Back Panel

Connectors 1 x DC power supply port (Support 12V-24V wide Voltage range)

1 x HDMI port

1 x DP port

1 x R J45 port

1 x AUDIO connector（2x Jacks）

4 x U SB connector

I/O Controller 1 x IT8782F-S

BIOS AMI Authorized 8Mbit BIOS, support RPL/PXE non-disk system

Form Factor Mini-ITX 120*120mm

Work Environment

Work Temperature -15~55°C

Work Humidity 10%~80% of relative humidity, non-congealable.

Apply Range ATM, Kiosk, Digital Signage or Living Room PC
