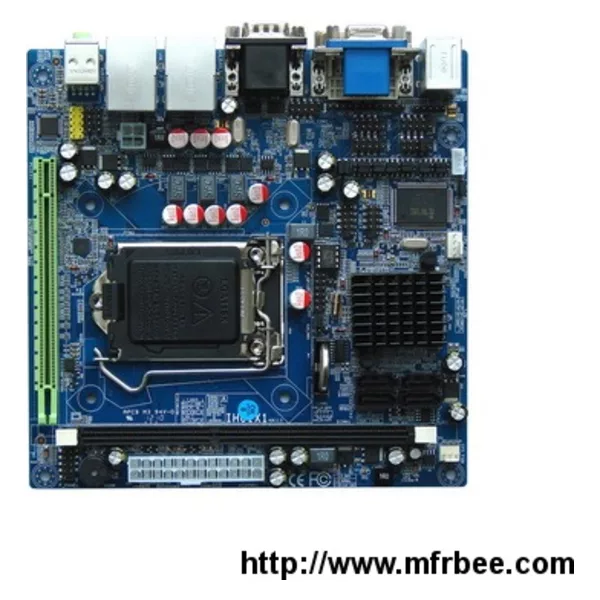

2043-1 ITX-HCM61X62A, Mini ITX motherboard
Product Quick Detail
- Minimum Order
- 1
- Place Of Origin
- China
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
CPU Intel core i7,core i5,core i3i processor
Chipset Single chip: Intel H61
Memory 1 x DDR3 1333/1066MHz DIMM, Max support 4GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC887 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 2x SATA2.0 Hard disk connector,1x SATA3.0 Hard disk connector
Expansion Slots 1xPCIE 16X solt
USB Support 8 PCS USB 2.0 Porst (4 pcs need extend)
Internal
I/O Connectors 1 x 24-pin ATX main power supply
4 x SATA headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
2 x USB 2.0 headers
1 x Clear CMOS header
6 x COM headers
1 x VGA_H header
1x CD_IN header
1x SPDIF header
1x GPIO header
Back Panel
Connectors
1 x VGA port
1 x PS2 mouse and keyboard ports
1X DVI port
4 x USB 2.0 port
2x COM
2 x RJ-45 ports
1 x audio 2 Jacks( Line-out, MIC or Line-in)
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
