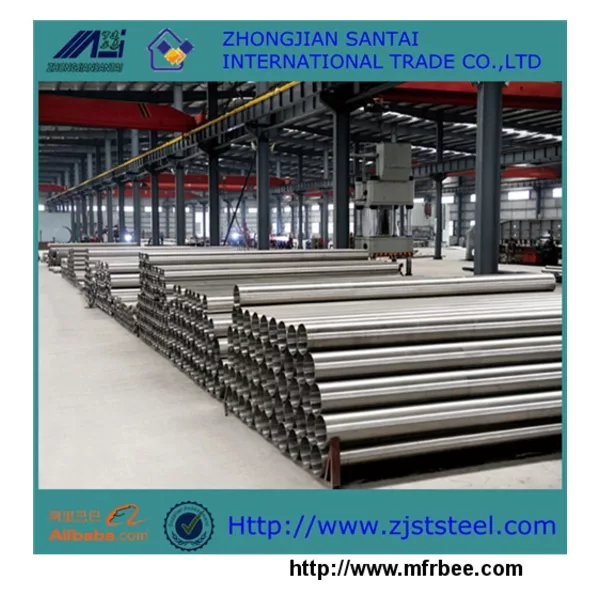

welded steel pipe

Place Of Origin
China
Minimum Order
1
Packaging
as request
Delivery
15 Days

The details of products:

1 Definition: welded steel pipe is also called welded pipe which is steel pipe formed by welding the curled steel plates or strip steel, with general fixed length of 6m.
2 Production process: raw material uncoiling – flattening – end cutting and welding – looping – molding – welding – internal/external removal of welding beads – precorrection – inductive heat treatment – sizing and straightening – eddy current testing – cutting – water pressure inspection – acid pickling – final inspection (strict control) – packing – delivery
3 Category:
Production methods:
a. Process – electric arc-welded pipes, resistance welded pipe (high frequency, low frequency), gas-welded pipes, furnace butt-welded pipes
b. Welding seam – straight welded pipes, spiral welded pipes
4 Wall Thickness
Thin-wall steel pipes, thick-wall steel pipes
5 End Shape
Circular welded pipes and specially-shaped (square, flat, etc.) welded pipes
6 Length: 6m -12m(capable of being customized and processed according to customer requirements)

7 Surface:Prime quality (bared, oiled, color paint, 3LPE, or other anti-corrosive

treatment)
8 Packing: bundling, nude packing, or packing according to customer requirements
9 Carbon Steel Straight Welded Pipes
Weight (kg) per meter
Note: d (outer diameter); t (wall thickness)
10 Features:
Straight welded pipes feature simple production process, high production efficiency, low cost and high development speed.
The intensity of spiral welded pipes is generally higher than that of straight welded pipes; welded pipes with larger pipe diameters can be produced by relatively narrow blanks; welded pipes with different pipe diameters can be produced blanks with the same width. However, spiral welded pipes have the length increase of 30~100%, as well as lower production speed compared with straight welded pipes with the same length.

11Application:

structure, electric power transmission tower projects, piling, water, oil & gas pipeline

engineering, mechanical industry, municipal projects, roads and its auxiliary facilities, etc.

12 The heoretical weight

Nominal size GB thickness mm

Size OD National
thickness
Welded pipe theory
weight gauge
4inch 15 1/2inch 21.25 2.75 1.26
6inch 20 3/4inch 26.75 2.75 1.63
1inch 25 1inch 33.3 3.25 2.42
1.2inch 32 11/4inch 42.25 3.25 3.13
1.5inch 40 11/2inch 48 3.5 3.84
2inch 50 2inch 60 3.5 4.88
2.5inch 70 21/2inch 75.5 3.75 6.64
3inch 80 3inch 88.5 4.0 8.34
4inch 100 4inch 114 4.0 10.85
5inch 125 5inch 140 4.5 15.04
6inch 150 6inch 165 4.5 17.81
8inch 200 8inch 219 6 31.52
