Prestressed anchorage for bridge construction
Product Quick Detail
- Place Of Origin
- China (Mainland)
- Minimum Order
- 1
- Packaging
- packed with fumigated wooden Cases
- Delivery
- 15 Days
Specifications
Prestressed anchorage for bridge construction
What prestressed do?
structure diagram

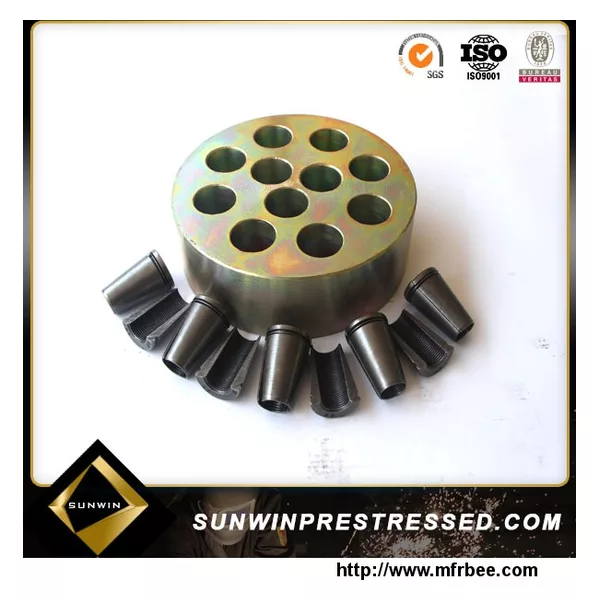

YM Series products are composed of tensioning anchor,holding anchor,connectors.It can used to lock the steel strand wires on/under classes of 2000Mpa standard strength,which is usually in diameters of 12.7mm /12.9mm/15.2mm/15.7mm.
It has been verified by pratice that various type of YM anchor also can be used for the different kinds of strand wires produced according to ASTM/BS/JIS/JIG/AS and other international standards respectively only if its technical parameters shall mary the related detail materials.
parameter table
| Type | The number of PC strand root | Anchor plate ΦAxBxΦD | Bellows ID ΦD | Anchor ring ΦExF | Spiral reinforcement | Anchor plate
| Tension jack supporting models
| ||
| ΦGxΦHxL | Laps | Mounting hole Pitch | Mounting hole diameter | ||||||
| YJM13-1 | 1 | 80x80xΦ10 | Φ39x43 | Φ70xΦ6x30 | 4 | YDC260Q | |||
| YJM13-2 | 2 | 135x70xΦ58 | Φ50 | Φ73x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
| YJM13-3 | 3 | 135x70xΦ58 | Φ50 | Φ78x45 | 100xΦ8x40 | 4 | 113 | M10 | YCW60B |
| YJM13-4 | 4 | 136x80xΦ62 | Φ55 | Φ88x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
| YJM13-5 | 5 | 136x80xΦ62 | Φ55 | Φ98x47 | 130xΦ10x40 | 4 | 115 | M10 | YCW100B |
| YJM13-6 | 6 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
| YJM13-7 | 7 | 146x80xΦ62 | Φ55 | Φ103x45 | 140xΦ10x50 | 4 | 126 | M10 | YCW150B |
| YJM13-8 | 8 | 162x100xΦ78 | Φ70 | Φ117x50 | 160xΦ12x50 | 4 | 140 | M10 | YCW250B |
| YJM13-9 | 9 | 176x120xΦ88 | Φ80 | Φ127x45 | 170xΦ14x50 | 5 | 153 | M10 | YCW250B |
| YJM13-10 | 10 | 183x120xΦ90 | Φ80 | Φ137x45 | 180xΦ14x50 | 5 | 162 | M10 | YCW250B |
| YJM13-11 | 11 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
| YJM13-12 | 12 | 210x120xΦ100 | Φ90 | Φ147x50 | 210xΦ14x60 | 5 | 180 | M10 | YCW250B |
| YJM13-13 | 13 | 210x140xΦ100 | Φ90 | Φ157x50 | 210xΦ14x60 | 5 | 185 | M10 | YCW350B |
| YJM13-14 | 14 | 210x140xΦ100 | Φ90 | Φ157x50 | 230xΦ16x60 | 5 | 185 | M10 | YCW350B |
| YJM13-15 | 15 | 234x160xΦ100 | Φ90 | Φ167x50 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
| YJM13-16 | 16 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B |
| YJM13-17 | 17 | 234x160xΦ100 | Φ90 | Φ167x55 | 230xΦ16x60 | 5 | 200 | M10 | YCW350B YCW350B |
| YJM13-18 | 18 | 234x160xΦ100 | Φ90 | Φ167x60 | 230xΦ16x60 | 5 | 200 | M10 | YCW400B |
| YJM13-19 | 19 | 244x180xΦ100 | Φ90 | 230xΦ16x60 | 6 | 210 | M10 | YCW400B |
Tianjin Sunwin Prestressed Technique Co.,Ltd is located in Xiqing Economic and Technological Development Area of Tianjin city,China mainland.We are a professional manufacturer specialized in kinds of prestressed concrete anchor,PC strand,PC wire,post tension equipment and inspection equipment,and trade all kinds of steel products.Product quality, enterprise credit and the construction technology enjoys a good reputation both at home and abroad.There is assets of more than 10 million dollars,annual output value of 40 million,staff of more than 200 people, participate in national standards in which more than 30 senior engineers,can join in foreign construction site. With advance production equipment and sophisticated professional testing equipment more than 200 sets.Have the ability to undertaking variety of level structure of railway,highway,bridge projects,high-rise building, tunnel, water conservancy,mining facilities required for large construction projects of prestressed tensioning construction capability.
If you have any inquiry pls feel free to contact us
Send your inquiry details in the below for free sample,click "send" now
- Country: China (Mainland)
- Business Type: Manufacturer,Trading Company
- Market:Americas,Europe,Middle East,Oceania,Africa,Emerging Markets
- Founded Year:2008
- Address:
- Contact:joy wei
