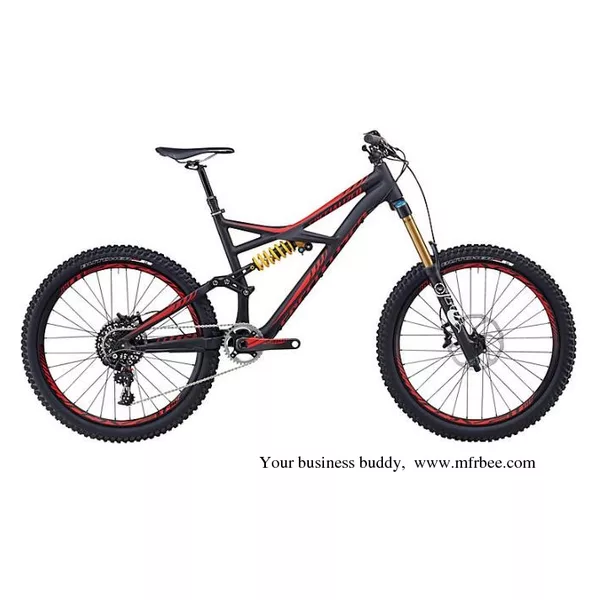

2014 Specialized Enduro Expert EVO Mountain Bike

SPECIFICATION :

FRAME
M5 aluminum, EVO geometry, tapered headtube, PF30 BB, ISCG '05 mount, internal Command Post IR routing, 142+ dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 180mm travel
SWAT
-
REAR SHOCK
Custom Ohlins TTX22M, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj., 8.75x2.5", S: 76x434lb, M: 84x479lb, L: 92x525lb
FORK
FOX 36 Van RC2, Kashima coating, coil spring, tapered alloy steerer, high/low speed comp and reb adj., 20mm thru-axle, 180mm travel
HEADSET
1-1/8 and 1-1/2" threadless, Campy style upper with 1-1/2" lower, cartridge bearings
STEM
Specialized P.Series MTB, forged alloy, 4-bolt, 40mm length, 31.8mm clamp
HANDLEBARS
Specialized Demo, low-rise, 7050 alloy, 780mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
FRONT BRAKE
Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, 200mm rotor
REAR BRAKE
Custom Avid Elixir 7 Trail, 4-piston caliper, steel backed metallic pad, 180mm rotor
BRAKE LEVERS
Custom Avid Elixir 7 Trail, hydraulic disc, tool-less reach adj.
FRONT DERAILLEUR
-
REAR DERAILLEUR
SRAM X01 Type 2, 11-speed, mid cage
SHIFT LEVERS
SRAM X01, 11-speed, trigger
CASSETTE
SRAM X01, 11-speed, 10-42
CHAIN
SRAM X01, 11-speed, hollow plates/pins, PowerLink
CRANKSET
Custom SRAM carbon S-2200, 34T XX1 style single ring, PF30 spindle, removable spider, S: 170mm, Others: 175mm
CHAINRINGS
34T
BOTTOM BRACKET
SRAM PF30, OS press-in bearings, sealed cartridge
PEDALS
-
RIMS
Roval DH 26, alloy disc, 23mm internal width, 32h
FRONT HUB
Specialized Hi Lo disc, sealed cartridge bearings, 20mm thru-axle, 32h
REAR HUB
Custom DT Swiss, Star Ratchet, XX1 driver body, 142mm, 32h
SPOKES
DT Industry Stainless, 3X front/rear 2.0mm
FRONT TIRE
Specialized Butcher SX, 2Bliss Ready, 26x2.3", foldable aramid bead, dual-compound, 60TPI
REAR TIRE
Specialized Butcher SX, 2Bliss Ready, 26x2.3", foldable aramid bead, dual-compound, 60TPI
INNER TUBES
-
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
SEAT BINDER
7050 hard anodized alloy collar, single bolt, 34.9mm
