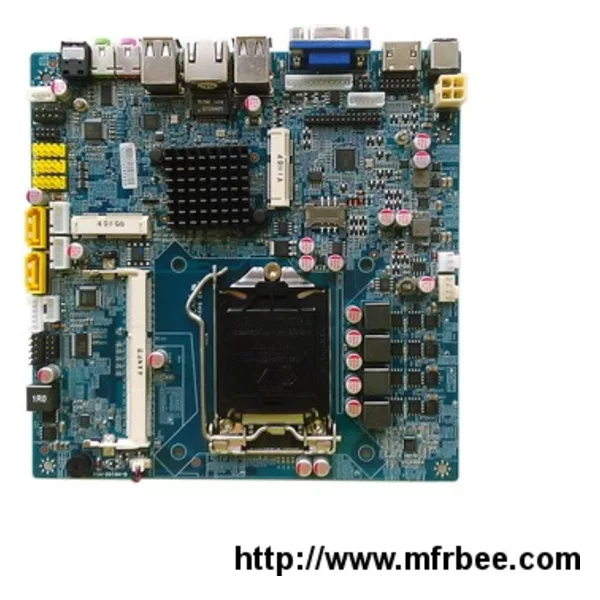

2043-4 ITX-HCM61D11G,Mini ITX Intel motherboard
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
CPU Intel core i7,core i5,core i3i processor
Chipset Single chip: Intel H61
Memory 1 xSODIMM DDR3 1333/1066MHz DIMM, Max support 16GB
Graphics support DirectX 9.0C
Audio Onboard Realtek ALC662 HD audio chip
LAN Onboard Realtek 8111E, 10/100/1000M lan support PXE.
Storage Interface 2x SATA2.0 Hard disk connector
Expansion Slots 2x MINI PCIE solts&SIM slot
USB Support 10 PCS USB 2.0 Ports (6 pcs need extend)
Internal
I/O Connectors 1 x 4-pin DC main power supply
2 x SATA headers
2x SATA _PWR headers
1 x CPU fan header
1 x front panel header
1 x F_Audio header
3 x USB 2.0 headers
1 x Clear CMOS header
1 x COM headers
1 x VGA_H header
1x HDMI header
1x GPIO header
1xLVDS header
1x INVERT header
1x SPK header
1x JMSKB header
Back Panel
Connectors 1 x VGA port
1X HDMI port
4 x USB 2.0 ports
1 x RJ-45 port
1 x audio 2 Jacks( Line-out, MIC or Line-in )
1x DC ports
1xOptical port
I/O Controller 1 x IT8782F
BIOS AMI Authorized 32Mbit BIOS process, support RPL/PXE
Form Factor Mini-ITX 170 x 170mm
Work Environmental
Working conditional temperature -15~55°C
Working conditional humidity 10%~80% relative humidity, non-condensing
Products Using Range ATM, Kiosk, Digital Signage and Living Room PC
